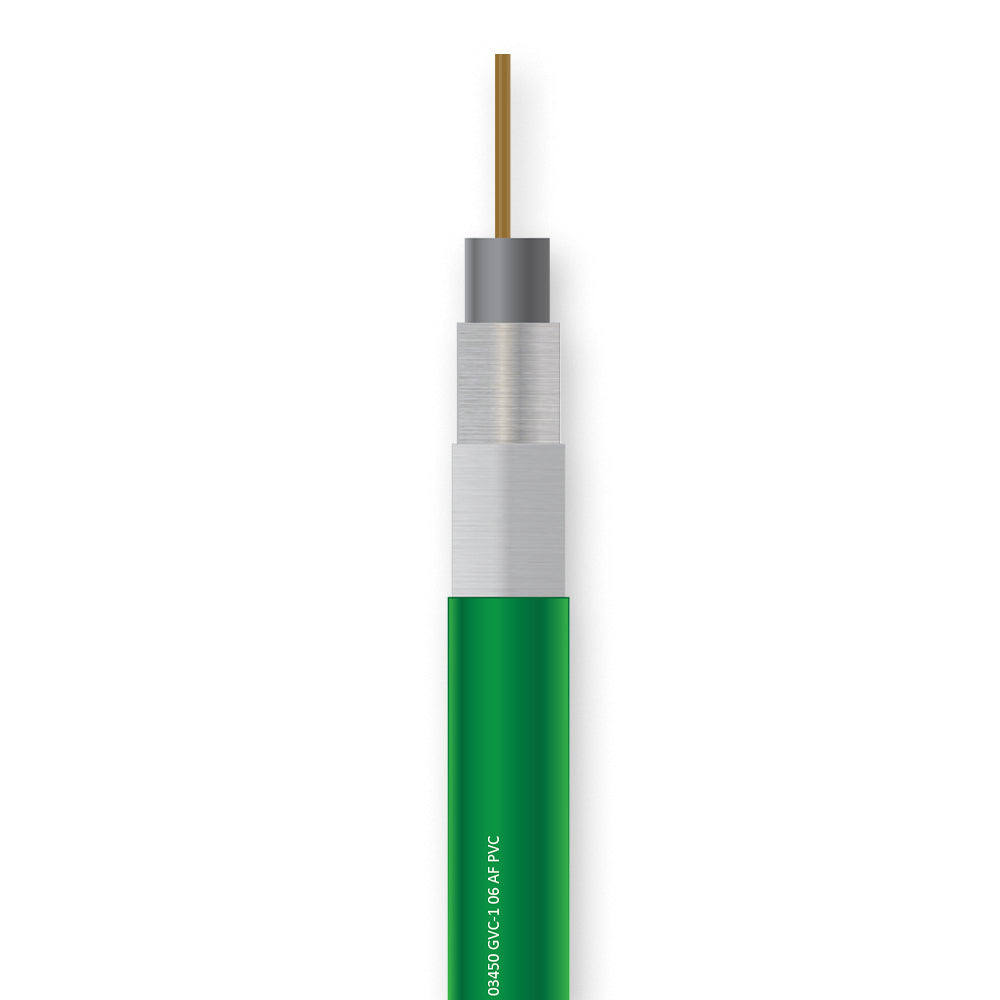

The Gotham 03451 GVC-1 06 AF is a professional-grade 75-ohm coaxial video cable designed for high-performance analog and digital video transmission. It features a solid bare copper conductor (0.60 mm), foam polyethylene insulation, and dual shielding comprising aluminum foil and a 91% braided tinned copper shield, all encased in a durable, flame-retardant (FRNC) jacket with an outer diameter of 4.5 mm. This construction ensures excellent signal integrity and minimal interference, making it ideal for applications such as HD-SDI, SDI, and other high-frequency video signals. The cable is compatible with standard 75-ohm connectors, including BNC, RCA, and F-type, providing versatility for various professional and consumer setups.

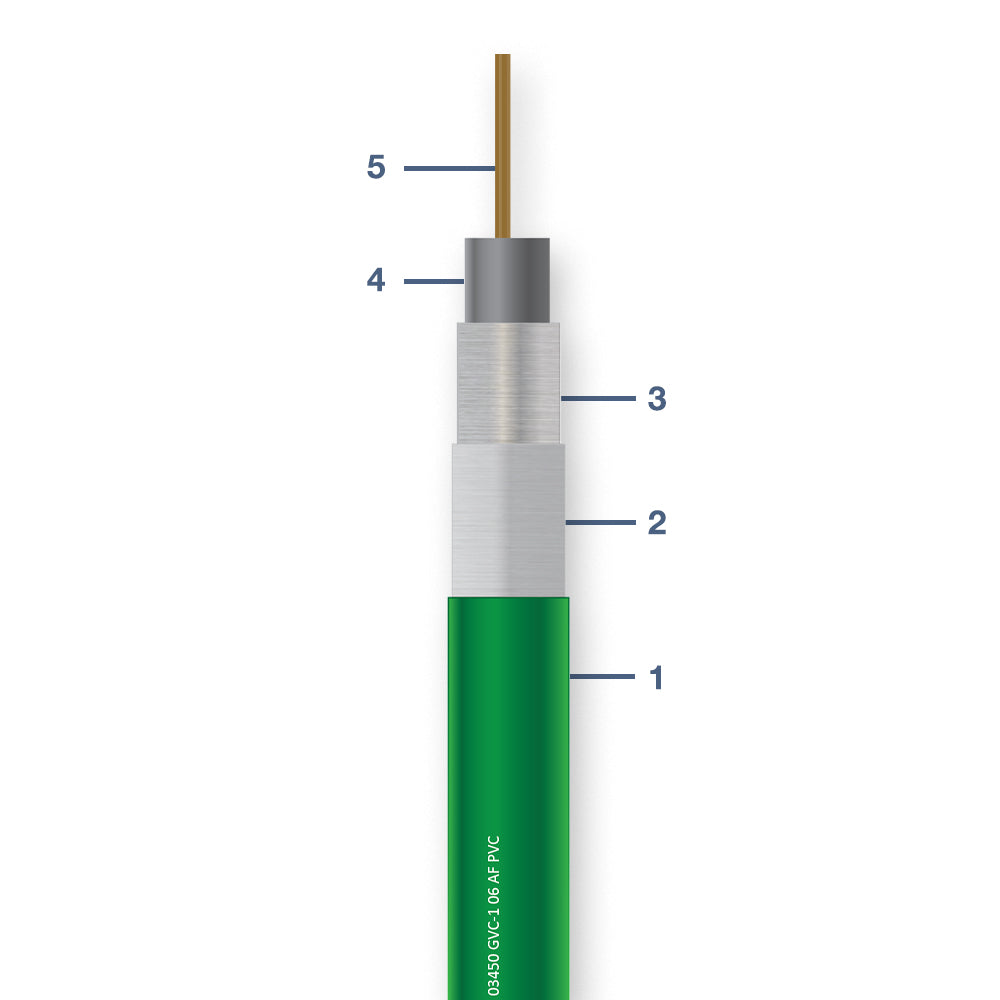

1 = Jacket: PVC Ø 4.5 mm green
2 = Shield No. 1 Braiding with tinned copper wire (0.10 mm)
Coverage min. 91%
3 = Shield No. 2 Aluminium foil
4 = Insulation: Foam-PE Ø 2.80 mm
5 = Conductor: Solid bare copper wire 0.60 mm

Conductor Resistance: < 61 Ohm /km
Attenuation (@ 1 MHz) < 1.2 dB/100m
Atten (@ 5 MHz) < 2.5 dB/100m
Atten (@ 30 MHz) < 5.9 dB/100m
Atten (@ 100 MHz) < 10.2 dB/100m
Atten (@ 200 MHz) < 14.6 dB/100m
Atten (@ 800 MHz) < 31.5 dB/100m
Atten (@ 1000 MHz) < 35.3 dB/100m
Atten (@ 1500 MHz) < 43.2 dB/100m
Insulation Resistance: > 10 gohm/km
Capacitance: < 56 nF/km
Characteristic Impedance: 75 Ohm +/- 2%
Temperature Range (Flexi-Installed) -5° to +50° C
Temperature Range (Fix-Installed) -30° to +70° C
