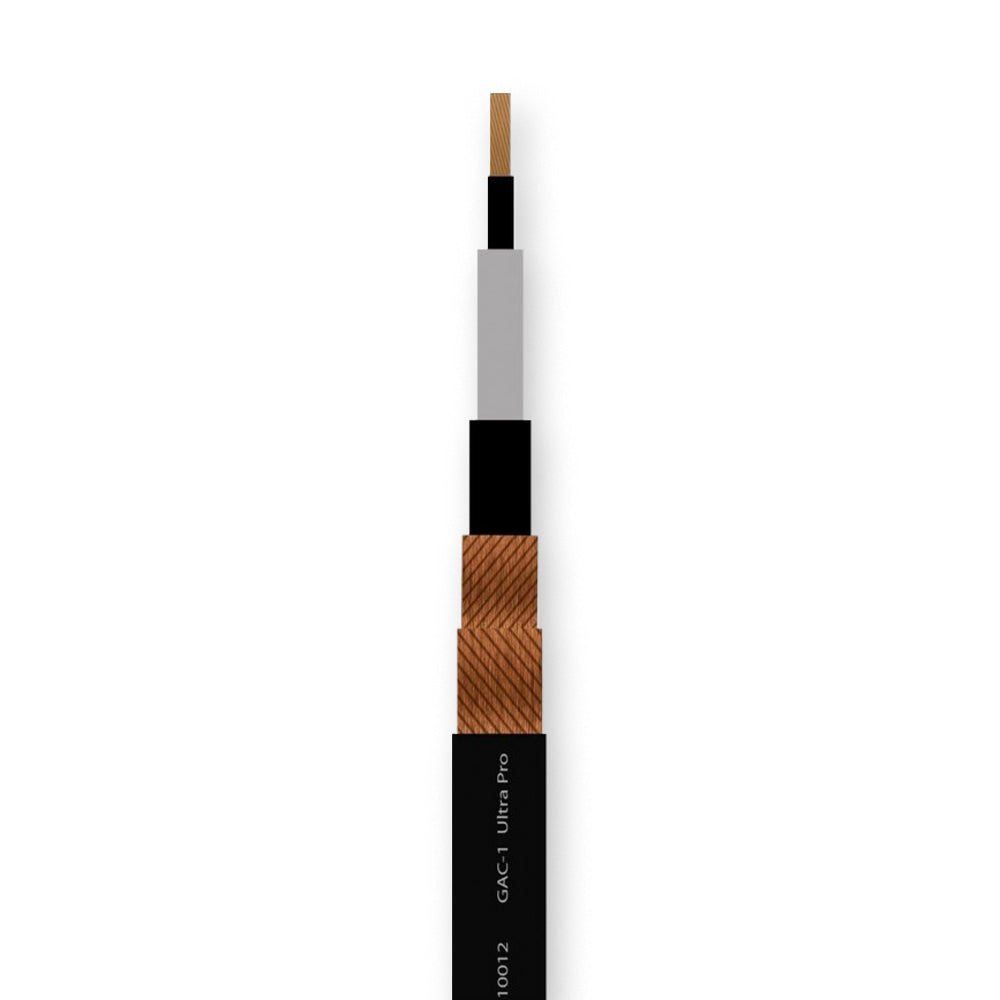

The Gotham 10012  GAC‑1 Ultra Pro is a professional-grade 6.3 mm double-shielded unbalanced audio cable engineered for high-performance analog signal transmission. It features a stranded LFOC bare copper conductor (7 × 0.20 mm, 0.22 mm²), foam-skin polyethylene insulation, and an advanced quad-layer shielding system: two 100%‑coverage bare copper Reussen braid shields wound in opposite directions, plus two conductive PVC layers. Encased in a rugged PVC jacket, this construction offers exceptional durability, flexibility, and microphonic resistance. With conductor resistance under 30.5 Ω/1000 ft, shielding resistance below 8.5 Ω/1000 ft, and capacitance as low as 21 pF/ft (approximately 70 nF/km), it preserves tonal integrity while rejecting interference—making it ideal for guitar leads, phono interconnects, live stage, and studio use. Rated to withstand up to 1 kV test voltage and flexible between –5 °C and +50 °C (expandable in fixed installation), it ensures reliable performance in demanding environments and pairs seamlessly with standard ¼″ TS or RCA connectors.

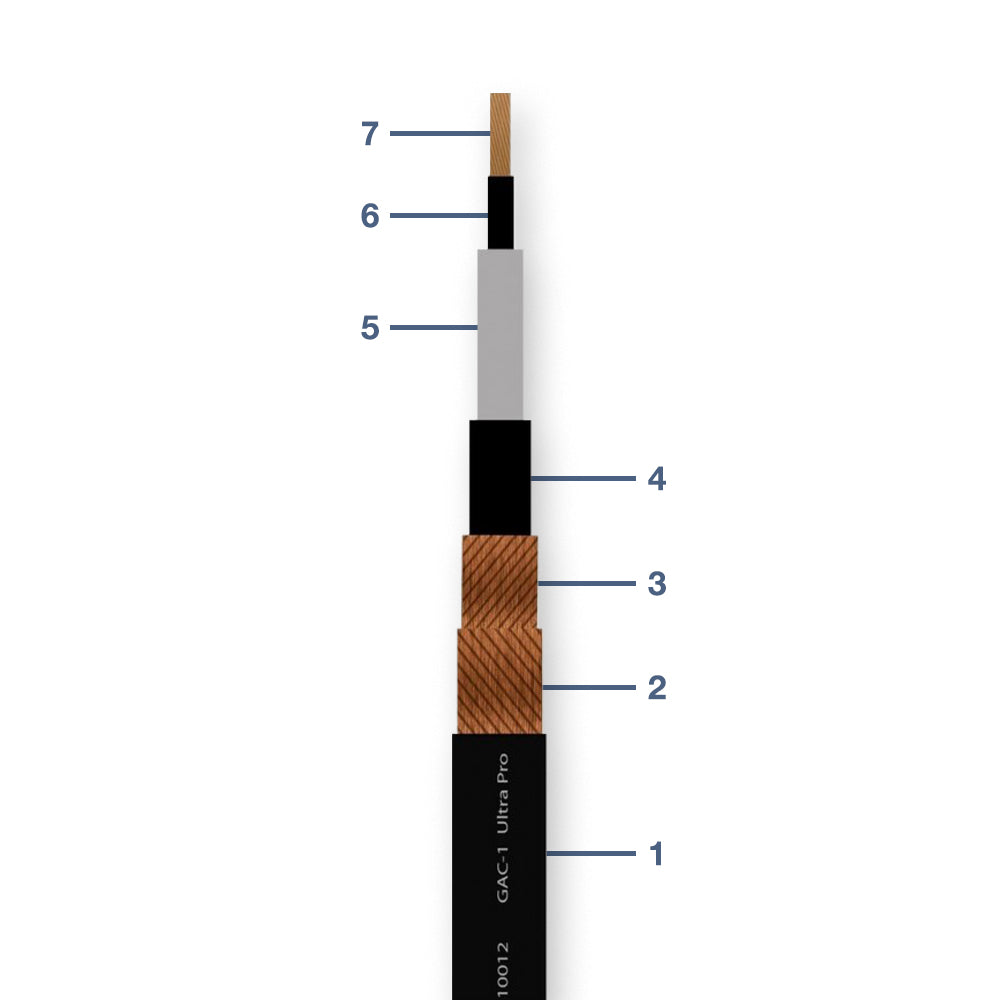

1 = Jacket: PVC, Ø 6.30 mm
2 = Shield No. 1 90x Bare LFOC copper wires (0.10 mm) 100% coverage
3 = Shield No. 2 90x Bare LFOC copper wires (0.10 mm) 100% coverage (Opposite wind)
4 = Layer PVC, semiconductive black
5 = Insulation: Cellular PE, Ø 2.50mm
6 = Layer PVC, semiconductive black 0,75mmØ
7 = Conductor: Stranded bare LFOC copper wires 7 x 0.20mm (0.22mm²) 7x32AWG = (24AWG)

Conductor Resistance: < 85 ohm/km
Shielding Resistance: < 11.30 Ohm/km
Capacitance: < 70 nF/km
Test Voltage: 1000 (RMS)
Temperature Range (Flexi-Installed) -5° to +50° C
Temperature Range (Fix-Installed) -30° to +70° C
