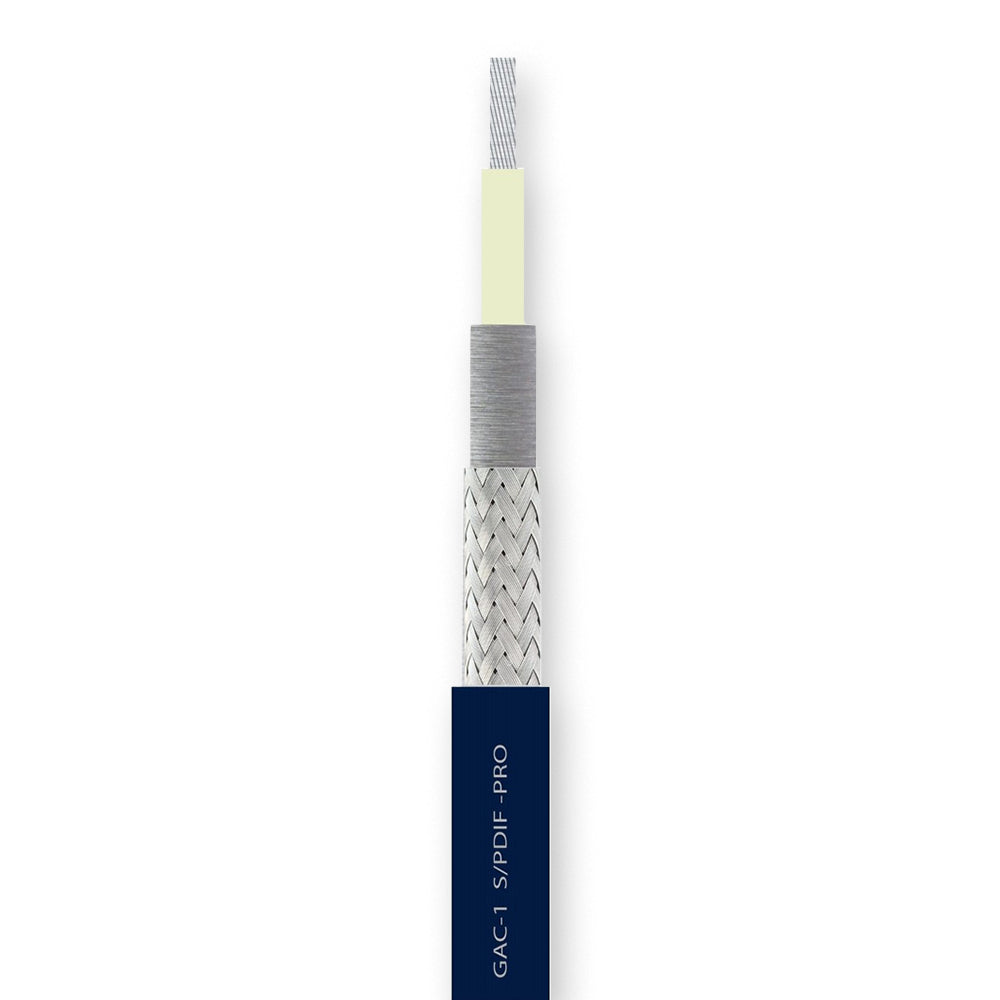

The Gotham 10070v2 GAC-1 S/PDIF Pro is a professional-grade 75-ohm digital coaxial cable designed for high-performance unbalanced digital audio transmission. It features a stranded silver-coated copper conductor (7 × 0.40 mm), foam-skin polyethylene insulation, and dual shielding consisting of an aluminum-polyester foil and a dense silver-coated copper braid. This is all housed in a rugged PVC jacket with a 6.7 mm outer diameter, offering excellent durability and flexibility. The cable's low capacitance and precise impedance control ensure accurate S/PDIF signal integrity with minimal loss, making it ideal for demanding digital audio applications. Compatible with standard 75-ohm connectors such as RCA and BNC, it provides reliable performance in both professional studio and high-end consumer setups.

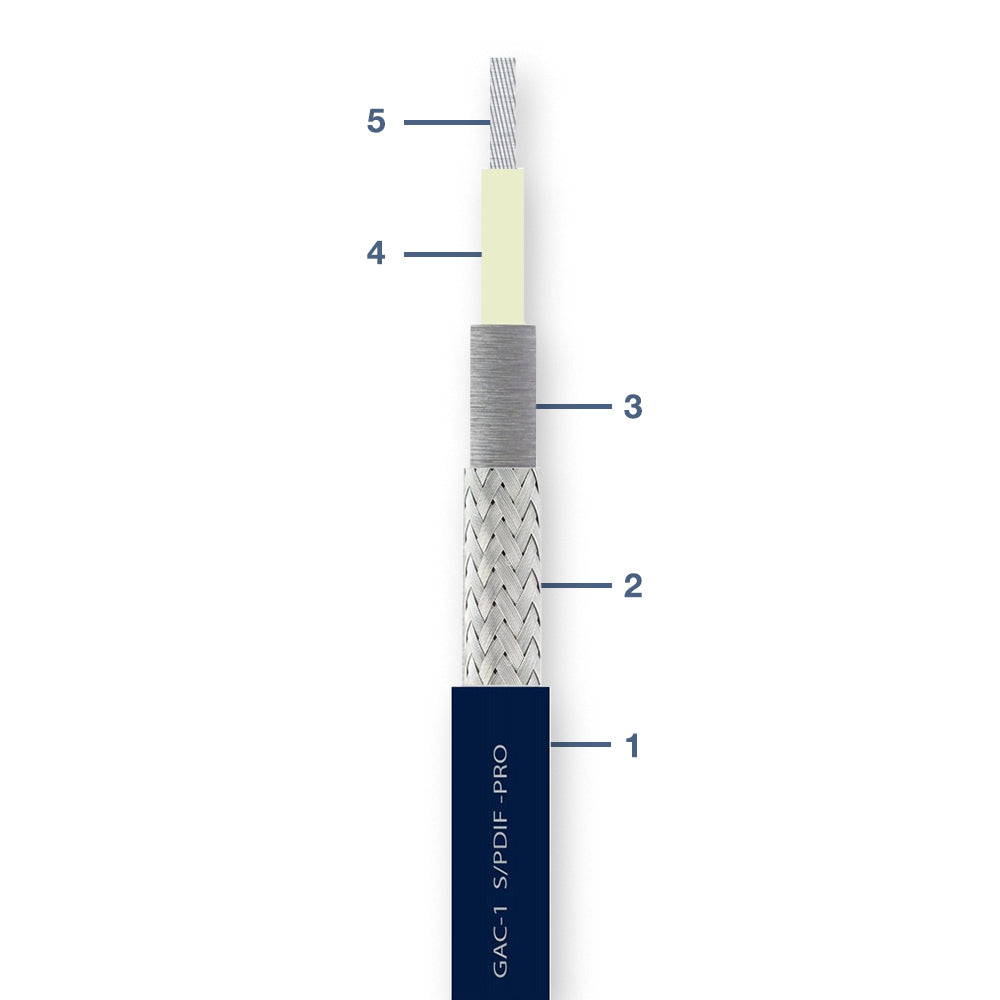

1 = Jacket: PVC Ø 6.7 mm max, ultrablue RAL5013
2 = Shield No. 1 Braiding with silver coated copper wires (0.10 mm)
3 = Shield No. 2 Aluminium polyester foil
4 = Insulation: Foam skin PE, 4.80 mm Ø GIFPE. Natural color
5 = Conductor: 7 x 0.40 mmØ (18AWG , 0,88 mm²) stranded silver coated copper wires

Conductor Resistance: < 20 Ohm /km
Attenuation (@ 1 MHz) < 0.80 dB/100m
Atten (@ 6 MHz) < 1.5 dB/100m
Insulation Resistance: > 10 Gohm/km
Capacitance: < 56 nF/km
Characteristic Impedance: 75 Ohm +/- 2%
Temperature Range (Flexi-Installed) -5° to +50° C
Temperature Range (Fix-Installed) -30° to +70° C
