The Gotham 10202 , is a professional-grade 3.0 mm foil‑shielded balanced audio installation cable engineered for reliable signal transmission in metal‑rich environments. It features finely stranded tinned copper conductors (7 × 0.20 mm per conductor, approximately 0.22 mm²) with PVC insulation (Ø 1.1 mm), twisted in a black-and-red color scheme. An aluminum–polyester foil shield bonds directly under the PVC jacket, which houses an integrated drain wire of 7 × 0.22 mm tinned copper. The compact PVC jacket (3.0 mm outer diameter) offers easy installation while delivering rugged durability. With conductor resistance under 85 Ω/km, shielding resistance under 65 Ω/km, and capacitance below 75 nF/km between conductors (and under 141 nF/km to shield), it ensures clean, low-loss transmission. Rated for 500 V conductor-to-conductor and 1,500 V conductor-to-shield test voltages, it operates flexibly from –5 °C to +50 °C (extended to –30 °C to +70 °C in fixed installations), making it ideal for professional studio or live rack‑mount wiring.

This cable is ideal for: XLR, TRS, and other balanced audio connectors.

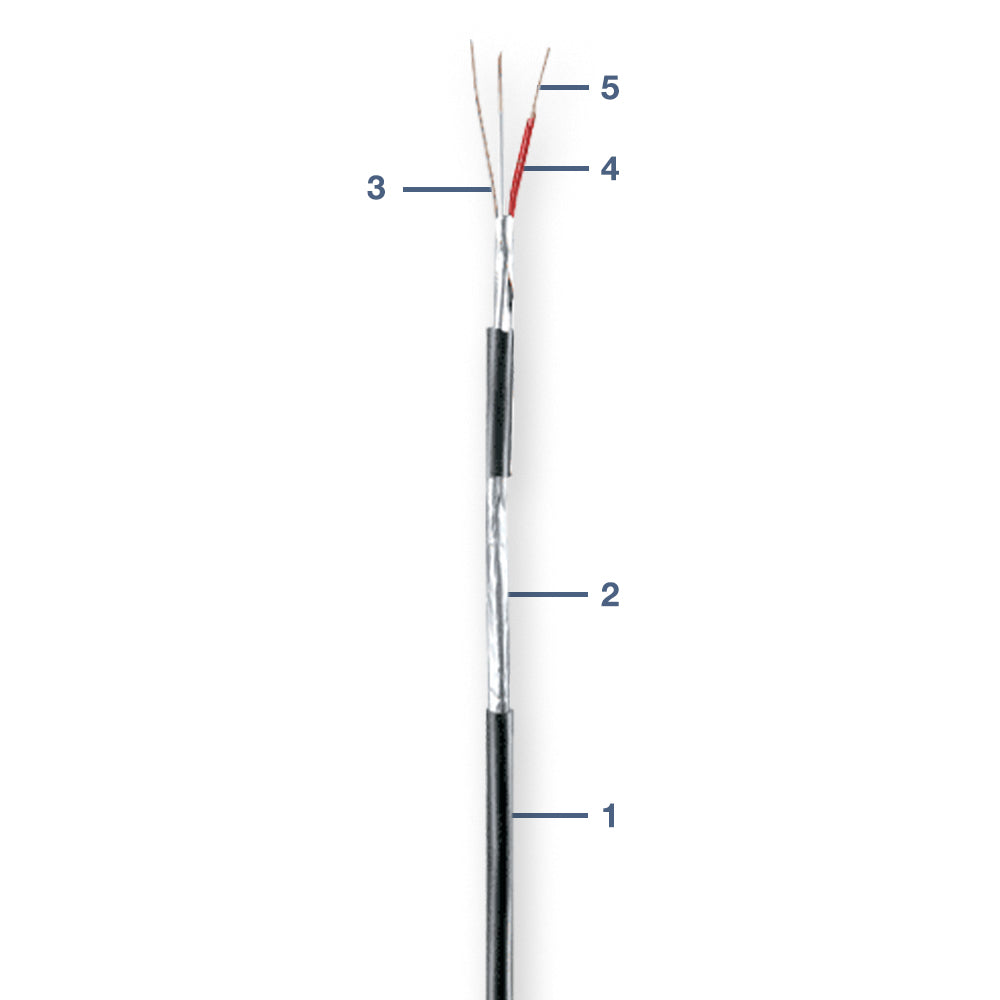

1 = Jacket: PVC, max Ø 3.0 mm
2 = Shield Aluminium-Polyester foil
3 = Drain Stranded tinned copper wires 7 x 0.22mm (0.22mm²)
4 = Insulation (Conductor): PE, Ø 1.1mm, twisted, black and red conductors
5 = Conductor: Stranded tinned copper wires 7 x 0.20mm (0.22mm²) 7x32AWG = (24 AWG)

Conductor Resistance: < 85 ohm/km
Shielding Resistance: < 65 Ohm/km
Capacitance (Conductor-Conductor) < 75 nF/km
Capacitance (Conductor-Shield) < 141 nF/km
Test Voltage (Conductor-Conductor) 500 (RMS)
Test Voltage (Conductor-Shield) 1500 (RMS)
Temperature Range (Flexi-Installed) -5° to +50° C
Temperature Range (Fix-Installed) -30° to +70° C
