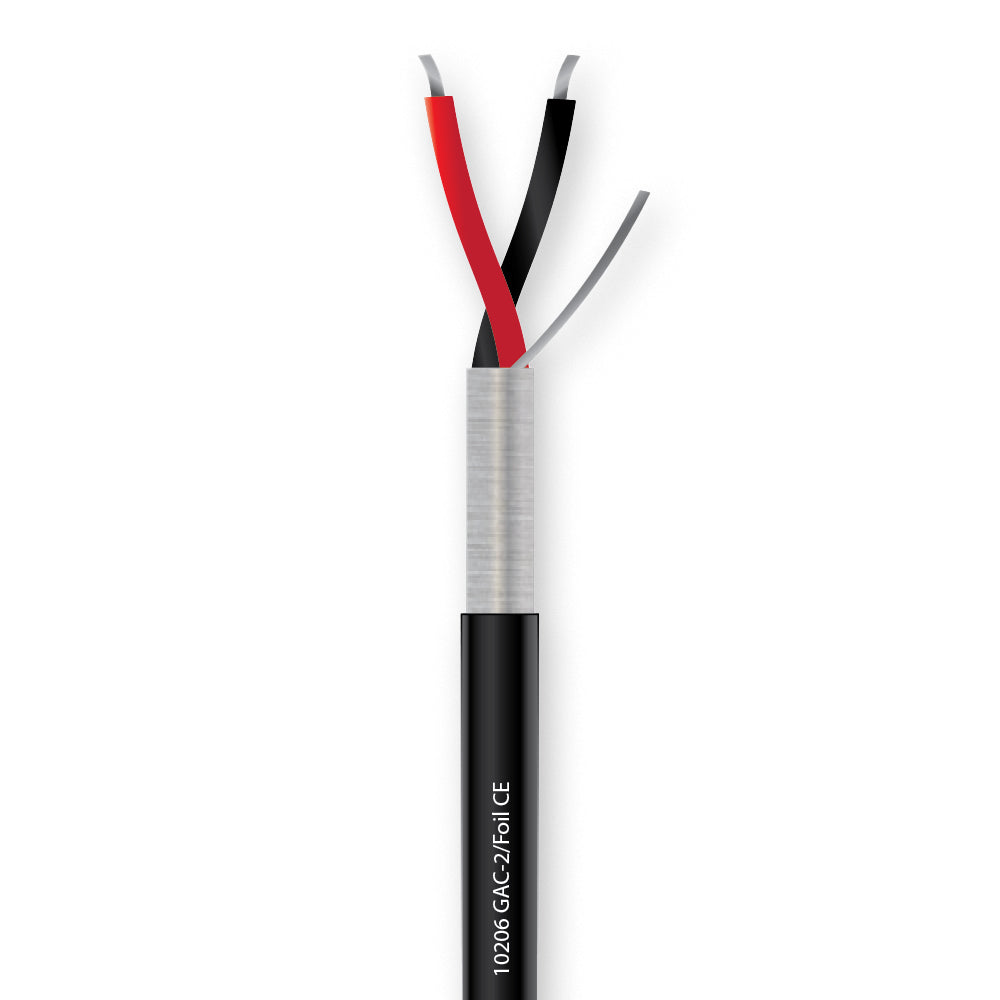

The Gotham 10206 GAC‑2/foil FRNC is a professional-grade 3.0 mm foil‑shielded balanced audio installation cable engineered for reliable signal transmission in metal-rich and fire-sensitive environments. It features finely stranded tinned copper conductors (7 × 0.20 mm, approx. 0.22 mm²) insulated with PVC (Ø 1.1 mm) and twisted in a black-and-red pair. Beneath the rugged FRNC (flame-retardant, halogen-free) PVC jacket lies an aluminum–polyester foil shield bonded directly to the jacket and an integrated 7 × 0.20 mm tinned copper drain wire. With conductor resistance below 85 Ω/km, shielding resistance under 65 Ω/km, and capacitance less than 75 nF/km between conductors (and 141 nF/km to shield), it ensures clean, low-loss audio performance. Rated to withstand 500 V conductor-to-conductor and 1,500 V conductor-to-shield during testing, it operates flexibly between –5 °C and +50 °C (expanding to –30 °C to +70 °C in fixed installations), making it ideal for professional studio wiring, rack-mount systems, and installation scenarios where safety and durability are paramount.

This cable is ideal for: XLR, TRS, and other balanced audio connectors.

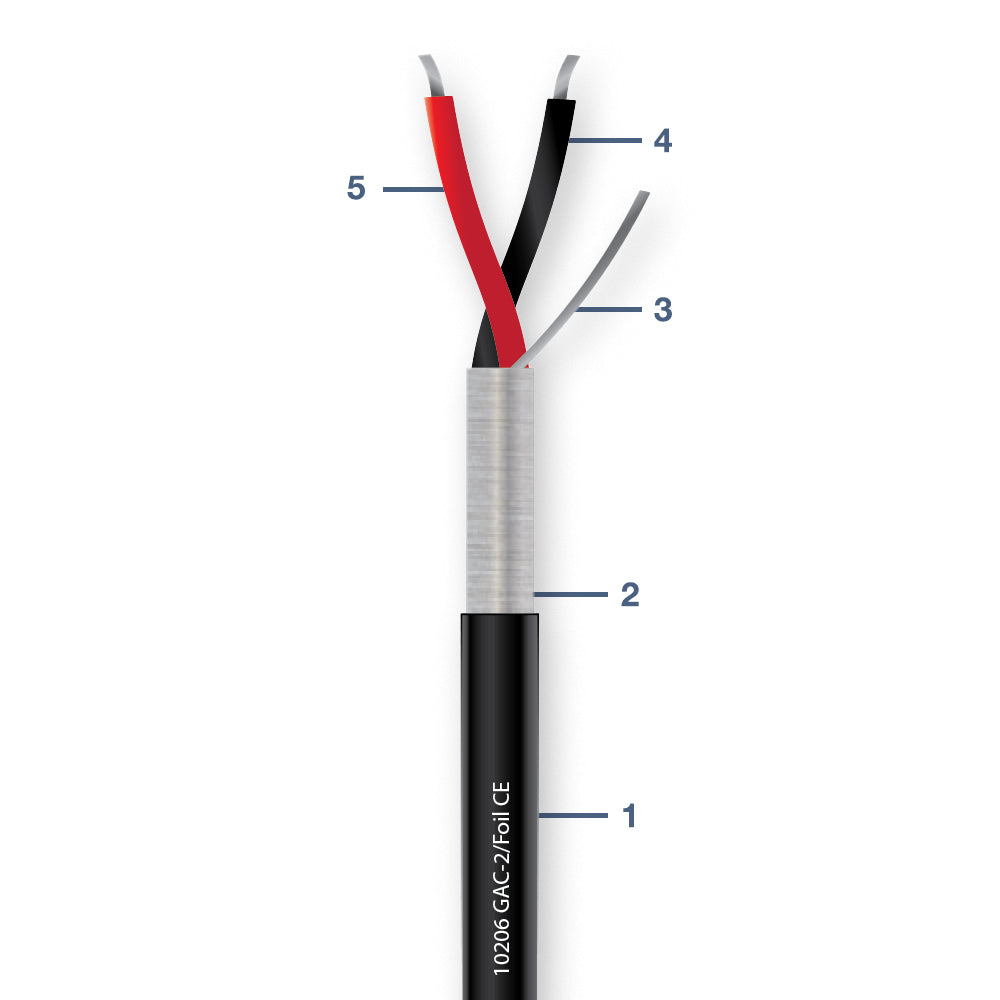

1 = Jacket: PVC, max Ø 3.0 mm
2 = Shield Aluminium-Polyester foil
3 = Drain Stranded tinned copper wires 7 x 0.22mm (0.22mm²)
4 = Insulation (Conductor): PE, Ø 1.1mm, twisted, black and red conductors
5 = Conductor: Stranded tinned copper wires 7 x 0.20mm (0.22mm²) 7x32AWG = (24 AWG)

Conductor Resistance: < 85 ohm/km
Shielding Resistance: < 65 Ohm/km
Capacitance (Conductor-Conductor) < 75 nF/km
Capacitance (Conductor-Shield) < 141 nF/km
Test Voltage (Conductor-Conductor) 500 (RMS)
Test Voltage (Conductor-Shield) 1500 (RMS)
Temperature Range (Flexi-Installed) -5° to +50° C
Temperature Range (Fix-Installed) -30° to +70° C
