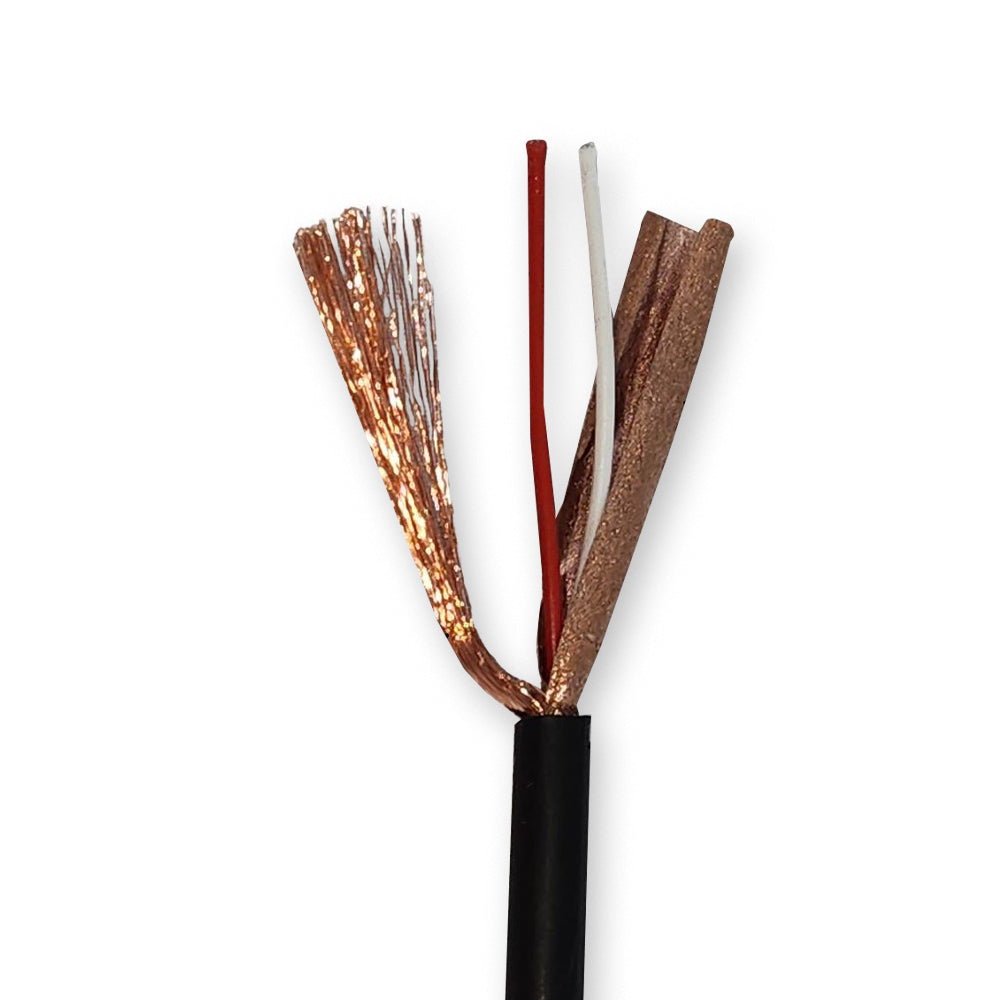

The Gotham 10351 GAC‑2/1 V2 PVC is a professional-grade 3.4 mm double-shielded balanced audio installation cable engineered for high-performance analog signal transmission in rack wiring and permanent install environments. It features finely stranded bare copper conductors (approx. 0.20 mm²) with foam-skin PE insulation, color-coded for easy identification. Dual 100 % bare copper braid shields—wound in opposing directions—lie beneath a robust black PVC jacket, ensuring strong interference rejection and microphonic resistance. With a characteristic impedance of 110 Ω (revised V2 spec as of July 2023), the cable maintains precise signal integrity, making it ideal for professional audio systems. Rated to withstand voltages up to 500 V conductor-to-conductor and 2,000 V conductor-to-shield, and flexible across a temperature range from –5 °C to +50 °C (expanding to –30 °C to +70 °C in fixed installations), it provides durability and reliability in demanding setups

This cable is ideal for: XLR, TRS, and other balanced audio connectors.

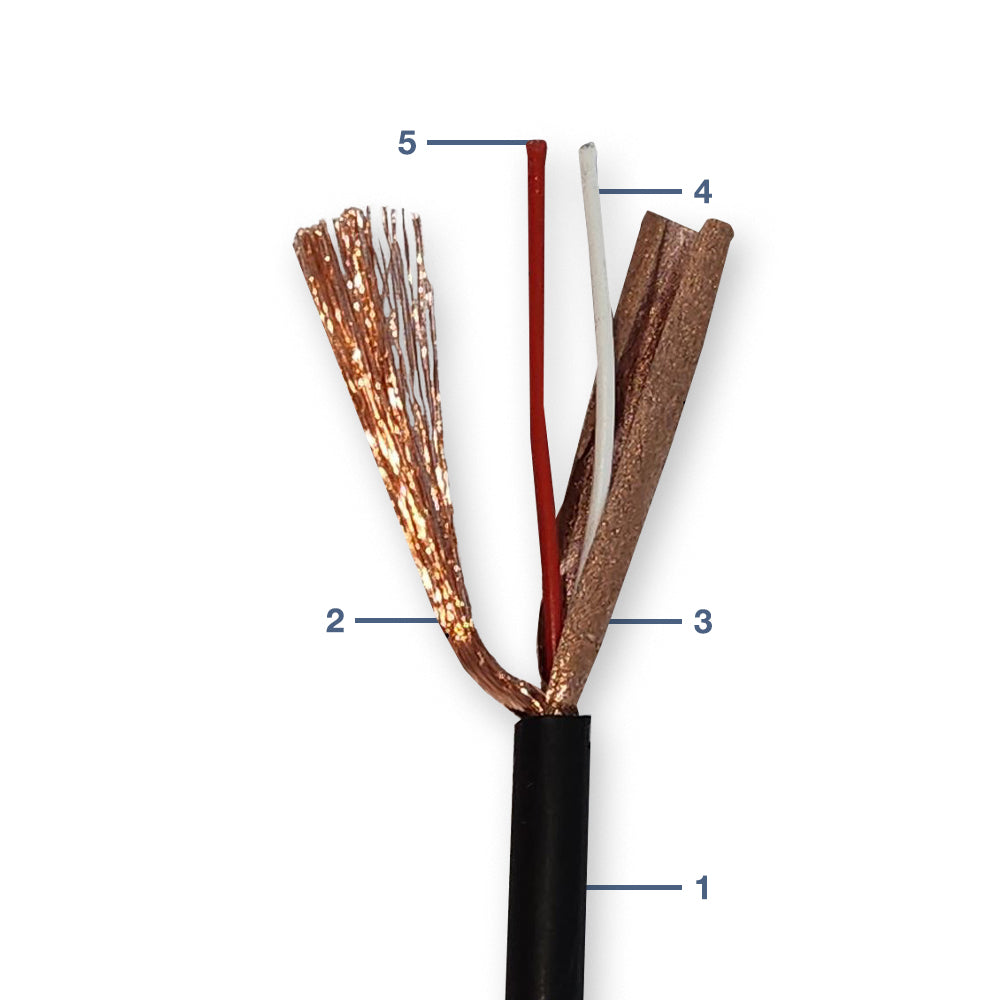

1 = Jacket: PVC, 3.40 mm max. Ø YM2 Black RAL 9005
2 = Shield 1 64 bare copper wires, (0.10 mm) 100% coverage
3 = Shield 2 K6160 Polyester nonwoven thermally bonded, both sides copper coated
4 = Insulation Foam Skin PP 09YSI, Ø 1.15 mm, red and white wrapped/twisted lay length 50 mm
5 = Conductor: Stranded bare copper wires 19 x 0.1 mm (0.15 mm²) 19x38AWG = 26 AWG

Conductor Resistance: < 138 ohm/km
Shielding Resistance: < 30 Ohm/km
Capacitance (Conductor-Conductor, @ 800Hz) < 47 nF/km
Capacitance (Conductor-Shield, @ 800Hz) < 110 nF/km
Characteristic Impedance (@ 20 kHz) 110 Ω +/- 15%
Test Voltage (Conductor-Conductor) 500 (RMS)
Test Voltage (Conductor-Shield) 2000 (RMS)
Operating Voltage Low
Temperature Range (Flexi-Installed) -5° to +50° C
Temperature Range (Fix-Installed) -30° to +70° C
