The Gotham GAC-2 is a high-quality, ultra-flexible, balanced analog audio cable designed for professional studio, broadcast, and live sound applications. It features two finely stranded oxygen-free copper conductors (2 x 0.22 mm²), a dielectric, and Gotham's signature double-reussen shield. This shielding method features two layers of 100% coverage copper spiral shielding for exceptional protection against electromagnetic and radio frequency interference. With its flexible velvet matte non-light reflecting PVC outer jacket and a total diameter of 5.4 mm, the GAC-2 offers outstanding durability and noise rejection, making it ideal for long cable runs and demanding environments.

This cable is ideal for: XLR, TRS, and other balanced audio connectors.

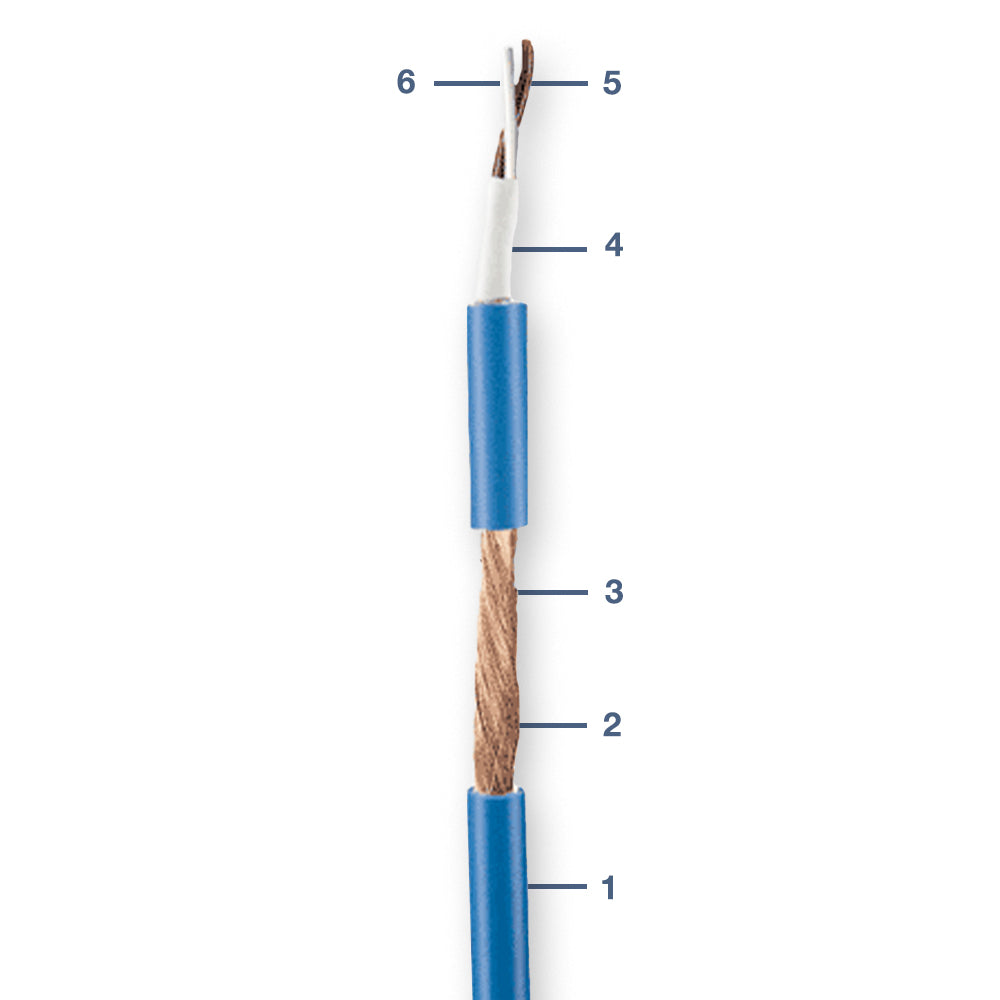

1. Jacket: PVC, max Ø 5.40 mm
2. Shield No. 1: Bare copper wires (0.10 mm) 100% coverage
3. Shield No. 2: Bare copper wires (0.10 mm) 100% coverage
4. Separation: PVC, Ø 3.1 mm, white tube
5. Insulation: PVC, white and brown Ø 1.2 mm, wrapped, twisted pair
6. Conductor: Stranded bare copper wires 48 x 0.07 mm (0.20 mm²) 48x41AWG (24AWG)

Conductor Resistance: < 90 ohm/km
Shielding Resistance: < 20 Ohm/km
Capacitance (Conductor-Conductor) < 125 nF/km
Capacitance (Conductor-Shield) < 189 nF/km
Test Voltage (Conductor-Conductor) 500 veff
Test Voltage (Conductor-Shield) 2000 veff
Temperature Range (Flexi-Installed) -5° to +50° C
Temperature Range (Fix-Installed) -30° to +70° C
