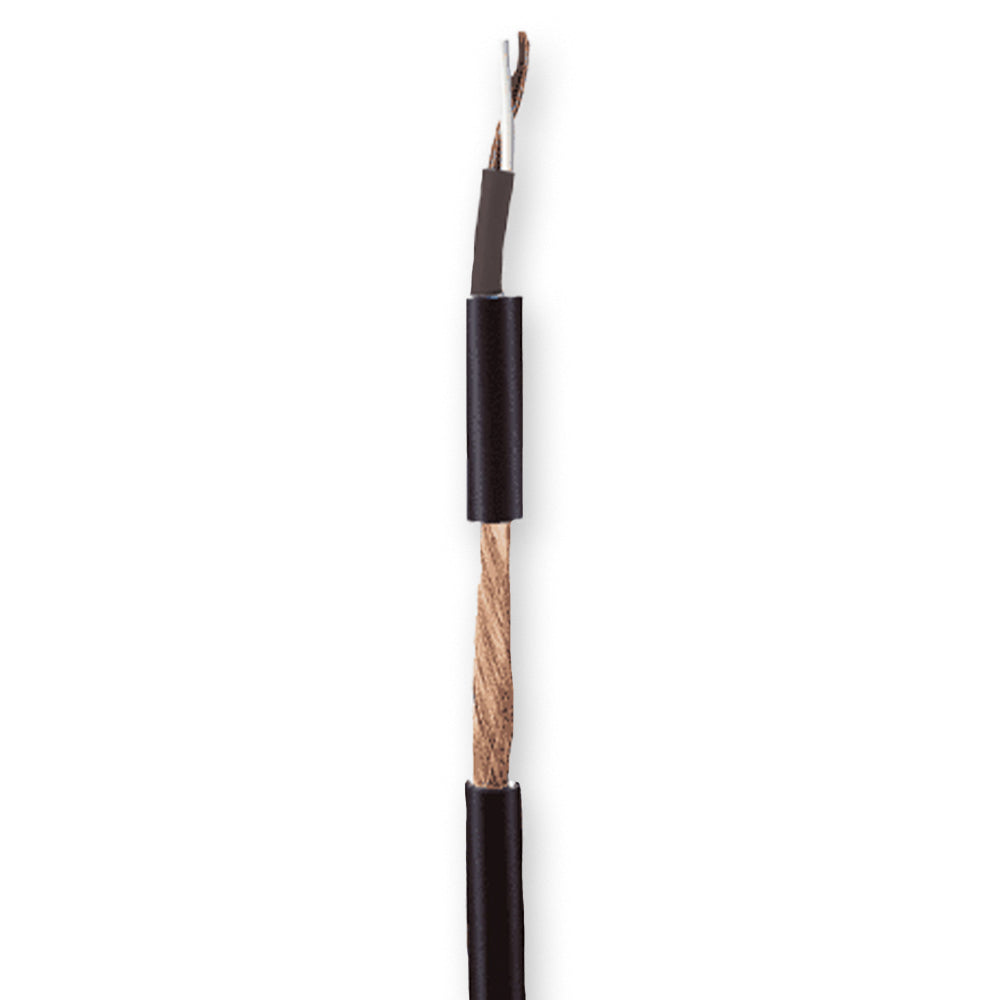

The Gotham 10421 GAC‑2 V1 is a professional-grade 5.4 mm double-shielded balanced audio cable engineered for high-performance analog signal transmission in critical installation and rack-mount environments. It features finely stranded conductors (approximately 0.22 mm²) with foam-skin polyethylene insulation, color-coded red and black for clear polarity identification. The cable is protected by dual 100 % bare copper braid shields—wound in opposing directions—to deliver excellent interference rejection and microphonic resilience. Encased in a durable PVC jacket with a 5.4mm outer diameter, this cable maintains a consistent characteristic impedance of 110 Ω, ensuring precise signal integrity. Rated for a test voltage of up to 500 V conductor-to-conductor and 2,000 V conductor-to-shield, and flexible across a temperature span from –5 °C to +50 °C (extendable to –30 °C to +70 °C in fixed installation), it offers dependable performance and flexibility for professional audio systems in studios, theaters, and live installations.

This cable is ideal for: XLR, TRS, and other balanced audio connectors.

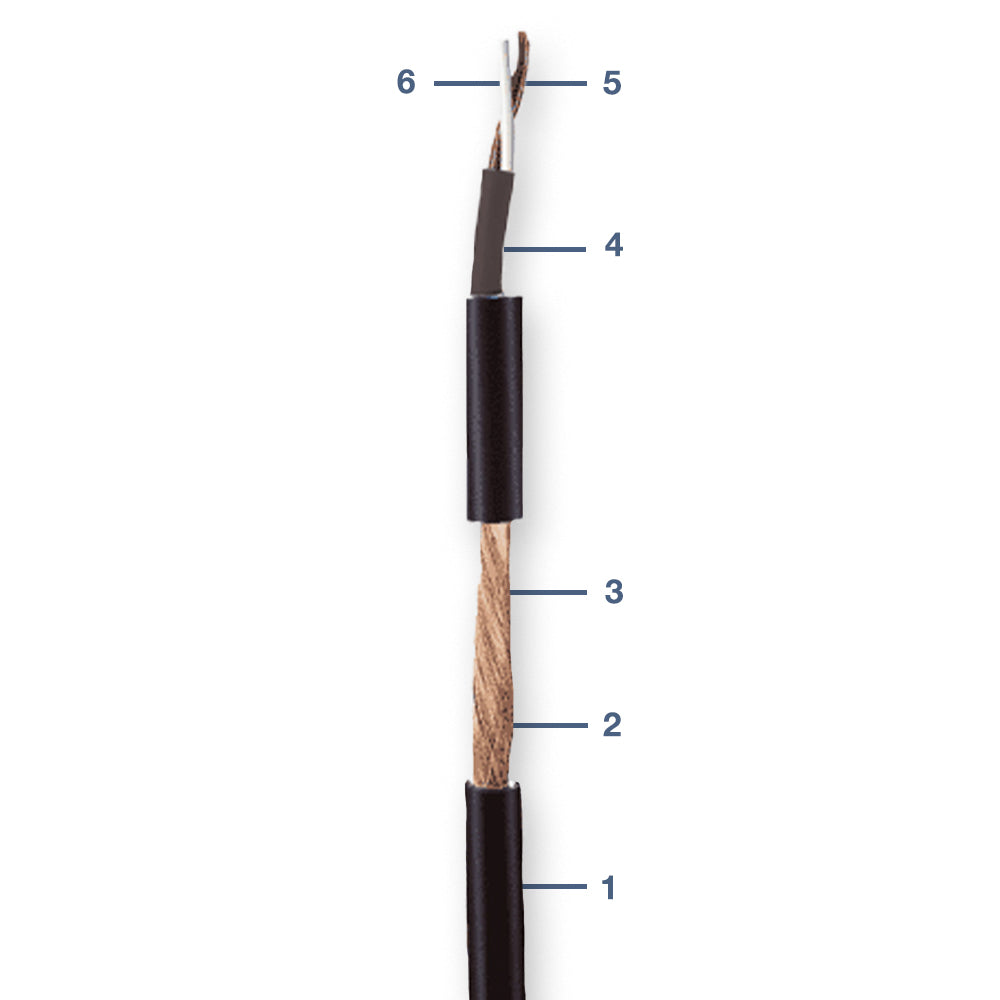

1 = Jacket: PVC, Ø 5.4 mm, black
2 = Shield 1 Bare copper wires (0.10 mm) 100% coverage
3 = Shield 2 Bare copper wires (0.10 mm) 100% coverage
4 = Noise Cancellation PVC, conductive, Ø 3.1 mm, black tube
5 = Insulation PE, white and brown Ø 1.2 mm, wrapped, twisted pair
6 = Conductor: Stranded bare copper wires 48 x 0.07 mm (0.20 mm²) 48x41AWG = (24AWG)

Conductor Resistance: < 92 ohm/km
Shielding Resistance: < 20 Ohm/km
Capacitance (Conductor-Conductor) max. 70 nF/km
Capacitance (Conductor-Shield) max. 118 nF/km
Test Voltage (Conductor-Conductor) 500 (RMS)
Test Voltage (Conductor-Shield) 2000 (RMS)
Temperature Range (Flexi-Installed) -5° to +50° C
Temperature Range (Fix-Installed) -30° to +70° C
