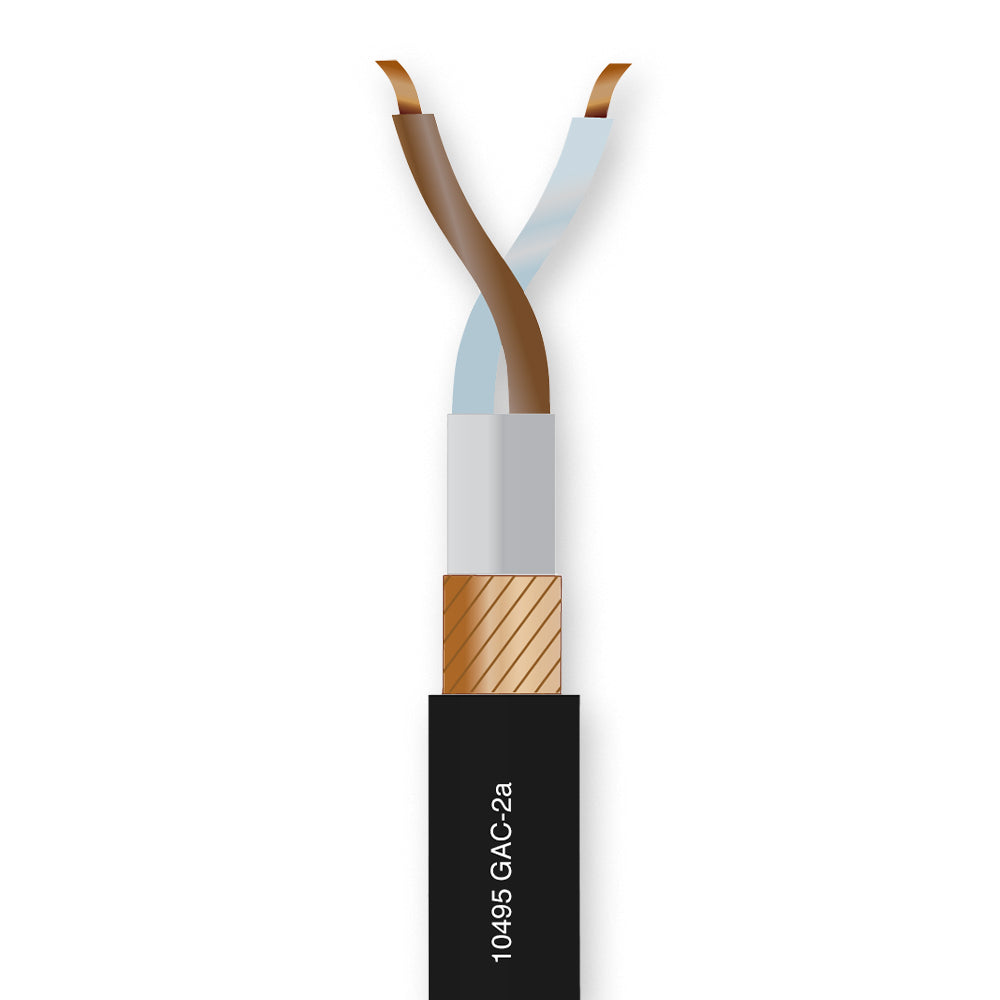

The Gotham 10495 GAC‑2a is a professional-grade 6 mm double-shielded balanced audio cable designed for high-performance microphone and line-level applications. It features finely stranded bare oxygen-free copper conductors (25 × 0.10 mm, approx. 0.20 mm²) with foam-skin PVC insulation in white and brown. Encased under a velvet-matte black PVC jacket, the cable incorporates dual Reussen-style bare copper braid shields (100% coverage) wound in opposite directions, plus a central PVC separation tube (3.1 mm Ø) for roundness and mechanical stability. With conductor resistance under 92 Ω/km, shielding resistance below 20 Ω/km, capacitance below 125 nF/km between conductors (and under 189 nF/km to shield), and a characteristic impedance of 145 Ω at 20 kHz, it delivers pristine signal fidelity. Rated for 500 V conductor-to-conductor and 2,000 V conductor-to-shield test voltages, and flexible between –5 °C and +50 °C (extending to –30 °C to +70 °C in fixed installations), it offers durability and performance ideal for professional recording, broadcast, and live sound environments.

This cable is ideal for: XLR, TRS, and other balanced audio connectors.

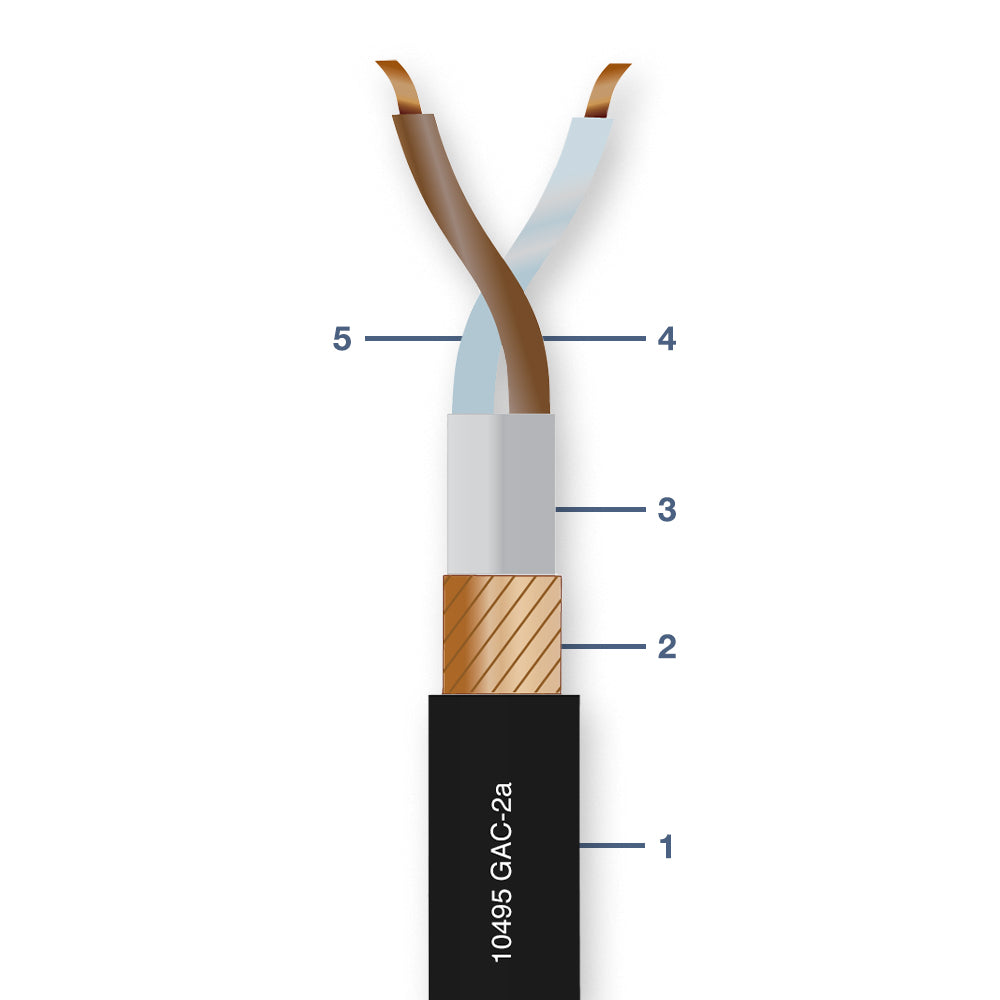

1 = Jacket: PVC, 6.00 mm max. Ø YM2 +/- 2%
2 = Shield Copper wires, (0.10 mm) 100% coverage
3 = Filling Material Separation tube PVC 3.10 mm Ø, white
4 = Insulation PVC 1.20 mm Ø white & brown (YI1)
5 = Conductor: Stranded bare copper wires 48 x 0.07 mm (0.20mm²) 48x41AWG = (24AWG)

Conductor Resistance: < 92 ohm/km
Shielding Resistance: < 35 Ohm/km
Insulation Resistance > 200 MOhm/km
Capacitance (Conductor-Conductor) < 125 nF/km
Capacitance (Conductor-Shield) < 189 nF/km
Test Voltage (Conductor-Conductor) 500 (RMS)
Test Voltage (Conductor-Shield) 2000 (RMS)
Temperature Range (Flexi-Installed) -5° to +50° C
Temperature Range (Fix-Installed) -30° to +70° C
