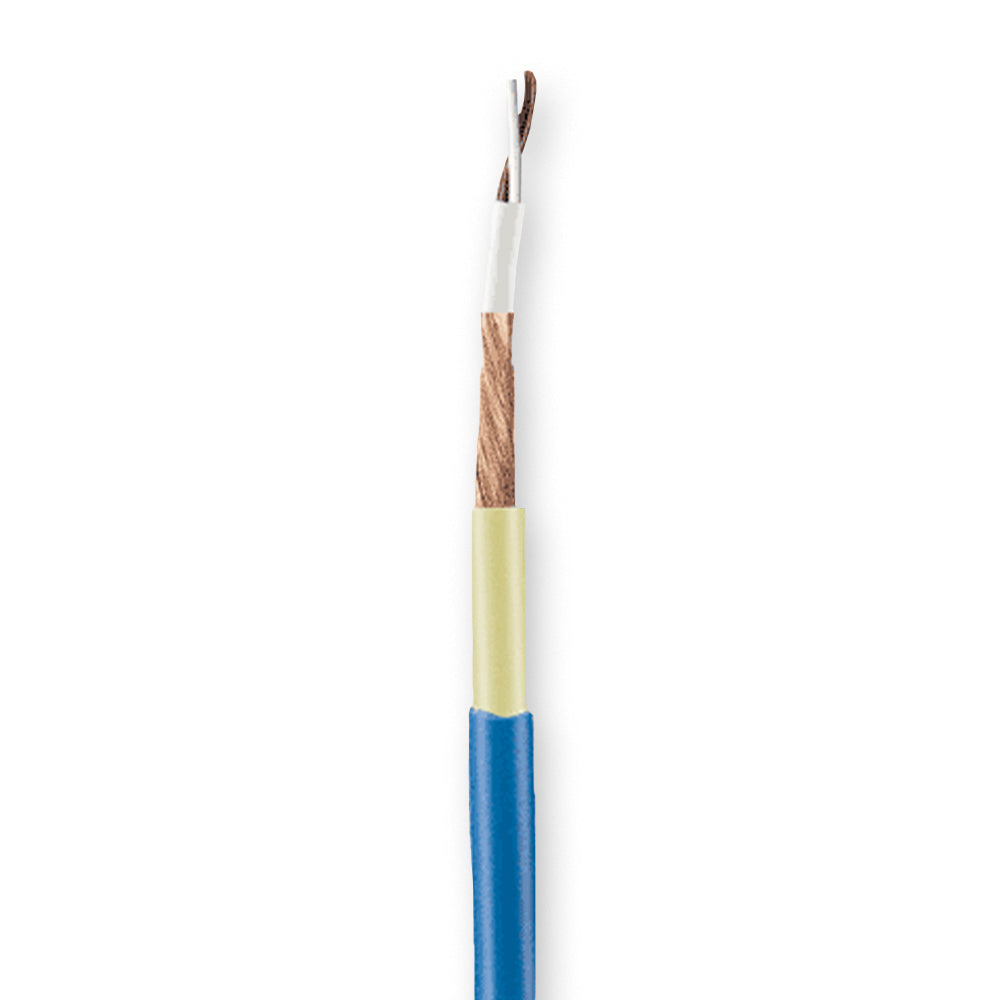

The Gotham 10502 GAC‑2 PUR (polyurathane) is a professional-grade 5.4 mm double-shielded balanced audio cable designed for rugged, high-performance analog signal transmission. It features finely stranded bare copper conductors (48 × 0.07 mm, approx. 0.19 mm²) insulated with PVC and separated by a white PVC tube, all enclosed by dual 100 % bare copper braid shields. These robust layers are protected by a tough blue PUR jacket, ensuring exceptional durability and resistance to oils, heat, and mechanical stress. With conductor resistance under 90 Ω/km, shielding resistance below 20 Ω/km, capacitance below 86 nF/km between conductors (and under 146 nF/km conductor-to‑shield), the cable delivers reliable signal integrity with minimal interference. Rated for 500 V conductor-to-conductor and 2,000 V conductor-to-shield test voltages and flexible between approximately –5 °C and +50 °C (extending down to –30 °C and up to +70 °C in fixed installations), it’s ideally suited for demanding stage, road, and installation use.

This cable is ideal for: XLR, TRS, and other balanced audio connectors.

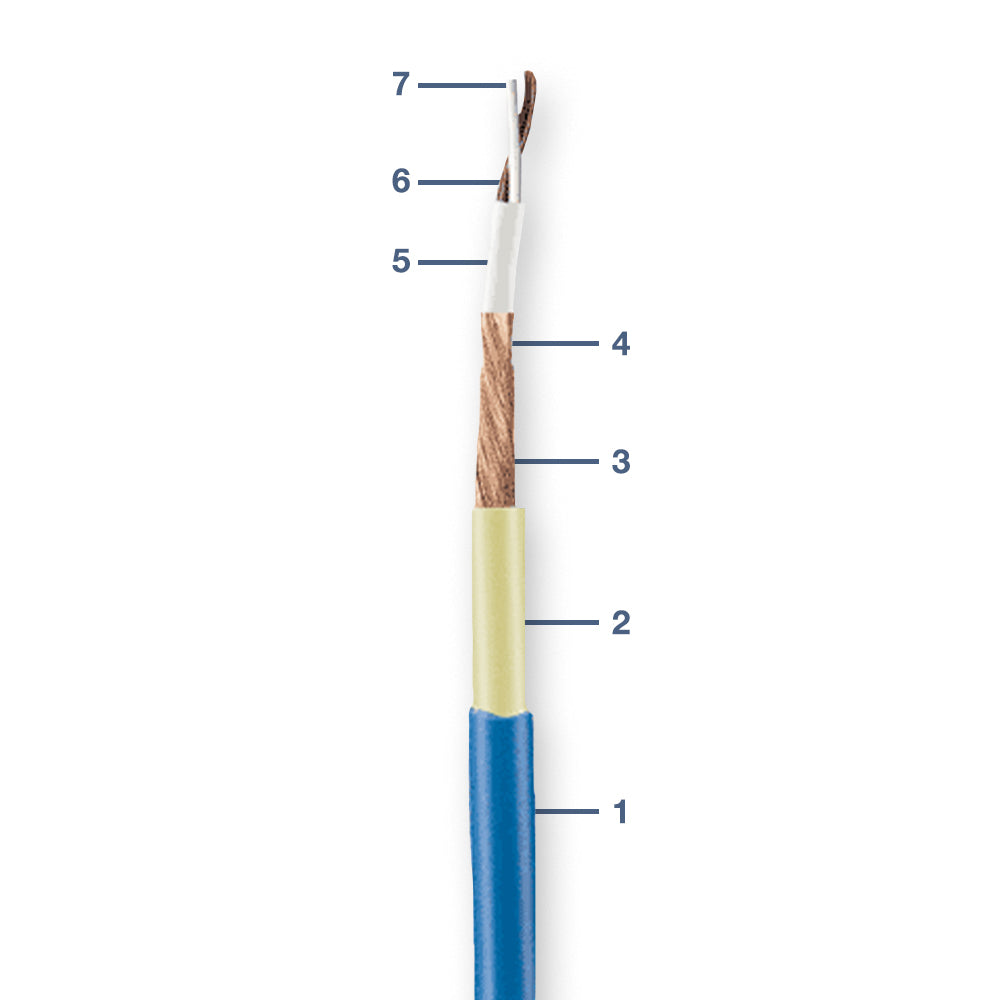

1 = Jacket: PUR, Ø 5.4 mm, blue RAL5015
2 = Separation PVC, Ø 4.4 mm, white
3 = Shield 1 Bare copper wires (0.10 mm) 100% coverage
4 = Shield 2 Bare copper wires (0.10 mm) 100% coverage
5 = Separation PVC, Ø 3.1 mm, white
6 = Insulation PVC, white and brown Ø 1.2 mm, wrapped
7 = Conductor: Stranded bare LCOF copper wires 48 x 0.07 mm (0.20 mm²) 48x41AWG = (24AWG)

Conductor Resistance: < 92 ohm/km
Shielding Resistance: < 20 Ohm/km
Capacitance (Conductor-Conductor) < 86 nF/km
Capacitance (Conductor-Shield) < 146 nF/km
Test Voltage (Conductor-Conductor) 500 (RMS)
Test Voltage (Conductor-Shield) 2000 (RMS)
Operating Voltage low voltage
Temperature Range (Flexi-Installed) -5° to +50° C
Temperature Range (Fix-Installed) -30° to +70° C
Melting Point (Outside Jacket) 160 - 195 °C
