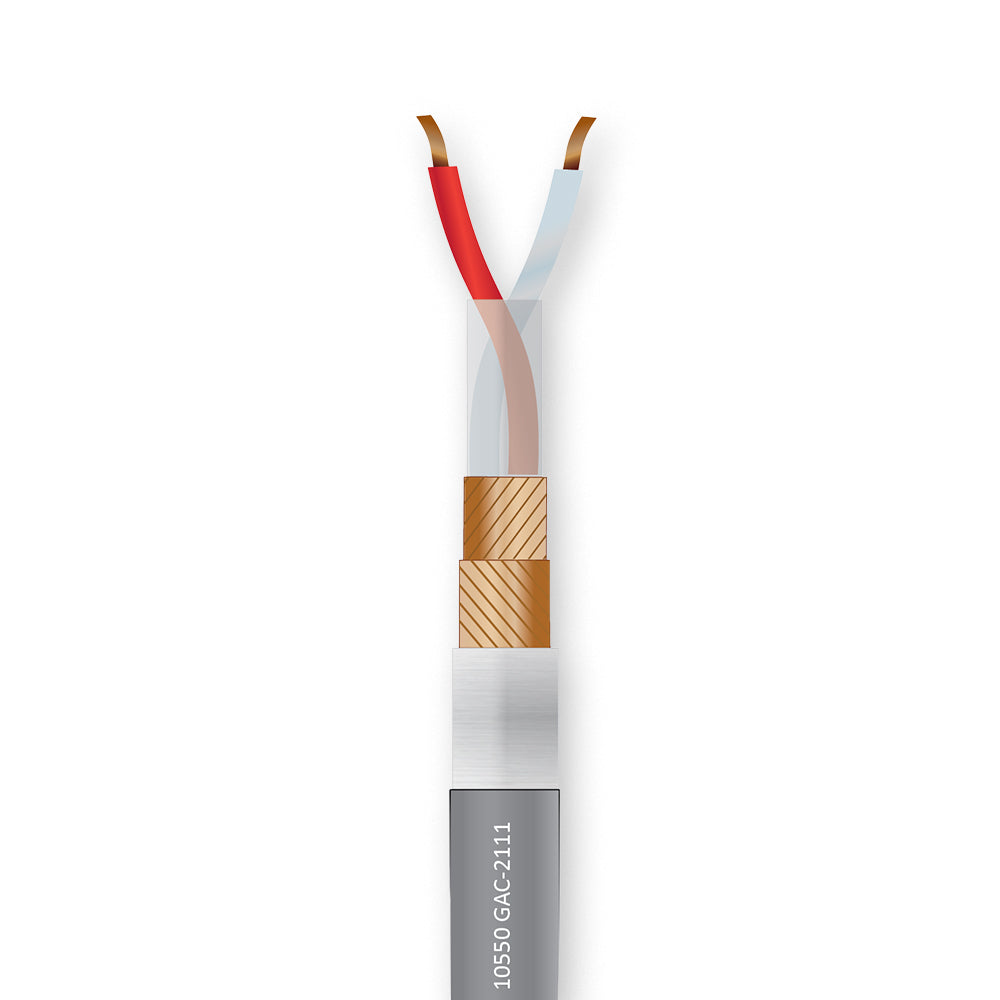

The Gotham 10550 GAC‑2/11 is a professional-grade 4.5 mm double-shielded balanced audio cable designed for rugged, high-performance analog signal transmission. It features finely stranded bare copper conductors (approx. 0.19 mm²) insulated with foam-skin polyethylene and separated by a central PVC tube to maintain structural integrity. Encased beneath a rugged jacket, the cable incorporates dual 100 % bare copper braid shields—wound in opposing directions—for superior interference rejection and microphonic resistance. With conductor resistance typically under 90 Ω/km, shielding resistance below 20 Ω/km, and capacitance around 86 nF/km between conductors (and under 146 nF/km conductor-to-shield), it preserves signal clarity and fidelity. Rated for 500 V conductor-to-conductor and 2,000 V conductor-to-shield test voltages, and flexible between –5 °C and +50 °C (extendable to –30 °C to +70 °C in fixed installations), it delivers reliable performance in demanding stage, road, and installation applications.

This cable is ideal for: XLR, TRS, and other balanced audio connectors.

1 = Jacket: PUR, Ø 4.5 mm, grey (light)
2 = Viscose fiber coat: Counter wrapped to the shields
2 = Shield No. 1: Bare copper wires (0.10 mm) 100% coverage
3 = Shield No. 2: Bare copper wires (0.10 mm) 100% coverage
4 = Separation: PE-coat
5 = Insulation: PE, Ø 1.20 mm, conductors black and white wrapped
6 = Conductor: (2 Conductors!): Stranded bare copper wires 28 x 0.10 mm OFC Ø 0.60mm (0.22 mm²) 28x38AWG = 24 AWG

Conductor Resistance: < 85 ohm/km
Shielding Resistance: < 20 Ohm/km
Capacitance (Conductor-Conductor) < 62 nF/km
Capacitance (Conductor-Shield) < 119 nF/km
Characteristic Impedance 145 Ohm
Test Voltage (Conductor-Conductor) 500 (RMS)
Test Voltage (Conductor-Shield) 2000 (RMS)
Operating Voltage low voltage
Temperature Range (Flexi-Installed) -5° to +50° C
Temperature Range (Fix-Installed) -30° to +70° C
