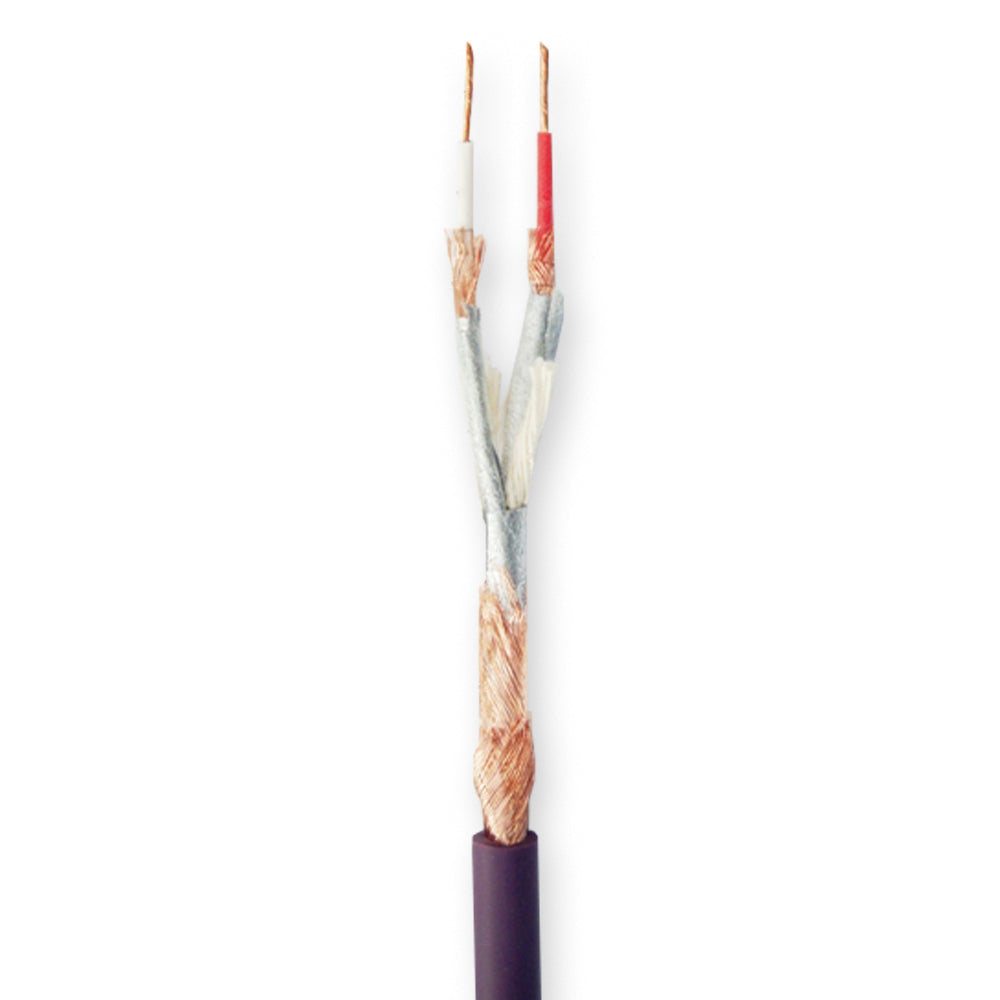

The Gotham 10561 GAC‑2 Ultra Pro is a professional-grade 8.0 mm double-shielded balanced audio cable engineered for uncompromising performance in both analog and AES/EBU digital applications. It features two low-capacitance, oxygen-free bare copper conductors (64 × 0.10 mm, approx. 0.50 mm²) with foam-skin polyethylene insulation (2.0 mm Ø), each individually shielded with a Reussen-style copper braid and aluminum-coated polyester foil. These dual channels are then collectively protected by a second layer of dual Reussen-style copper braiding, ensuring full 100 % coverage and superior noise rejection. Housed in a rugged, matte-black PVC jacket, the cable offers exceptional durability and flexibility. With a conductor resistance of 39 Ω/km, shield resistance under 28 Ω/km, capacitance of ≤ 50 nF/km between conductors (and ≤ 135 nF/km to shield), and a precise characteristic impedance of 110 Ω, it delivers outstanding signal integrity across a wide frequency range. Rated for test voltages up to 2,000 V and operable between –5 °C and +50 °C (–30 °C to +70 °C in fixed installations), this cable is ideal for critical studio, live, and broadcast environments requiring both analog and digital reliability.

This cable is ideal for: XLR, TRS, and other balanced audio connectors.

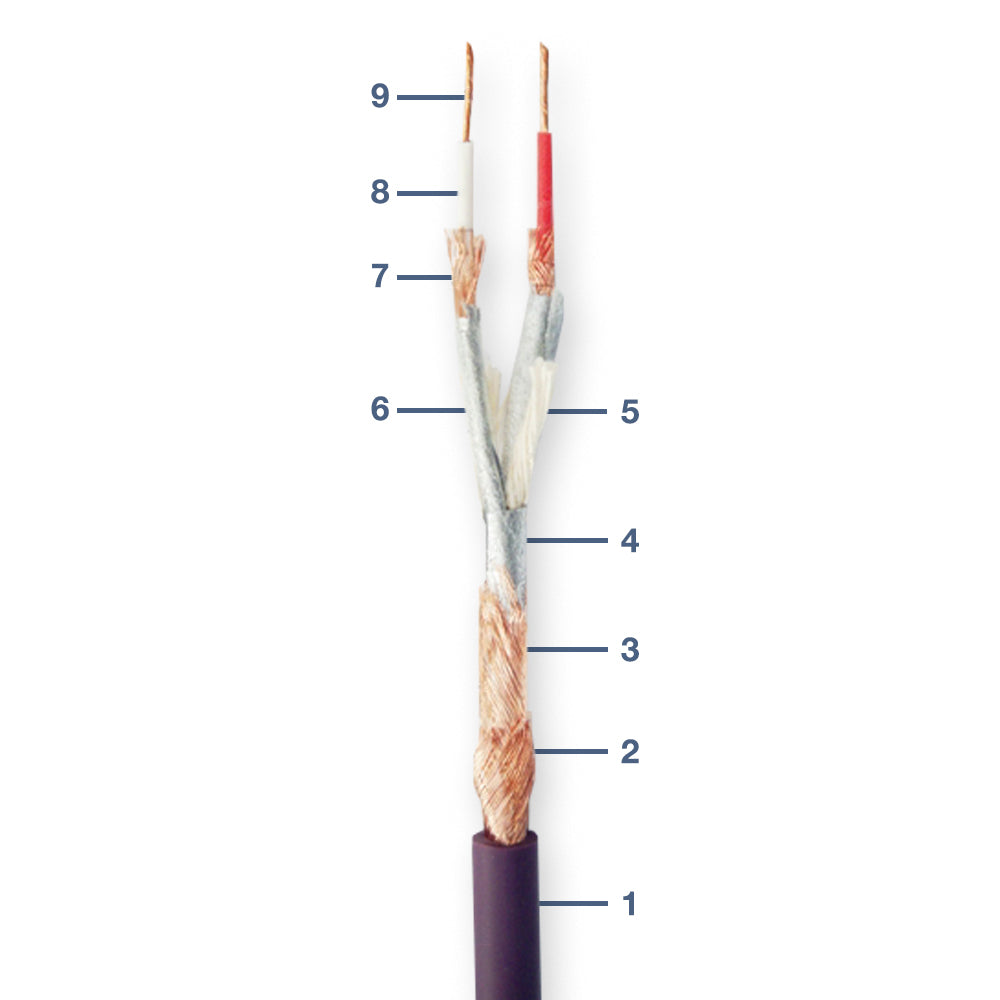

1 = Jacket: PVC, max. Ø 8,00 mm in dark blue RAL5013 (10666 in purple as shown)
2 = Complete Shield 1 Bare copper wires (0.10 mm) 100% coverage
3 = Complete Shield 2 Bare copper wires (0.10 mm) 100% coverage
4 = Layer Polyester nonwoven thermally bonded, both sides aluminium coated
5 = Separation: Filler material viscose
6 = Conductor Shield Layer Polyester nonwoven thermally bonded, both sides aluminium coated
7 = Conductor Shield Bare copper wires (0.10 mm) 100% coverage
8 = Insulation Cellular PE, Ø 2.00mm white/red
9 = Conductor Stranded bare LCOF copper wires 64 x 0.10mm (0.50mm²) 64x38AWG = 20AWG

Conductor Resistance: < 39 ohm/km
Shielding Resistance: < 28 Ohm/km
Capacitance (Conductor-Conductor) < 50 nF/km
Capacitance (Conductor-Shield) < 135 nF/km
Impedance 115 Ohm
Test Voltage 2,000 (RMS)
Temperature Range (Flexi-Installed) -5° to +50° C
Temperature Range (Fix-Installed) -30° to +70° C
