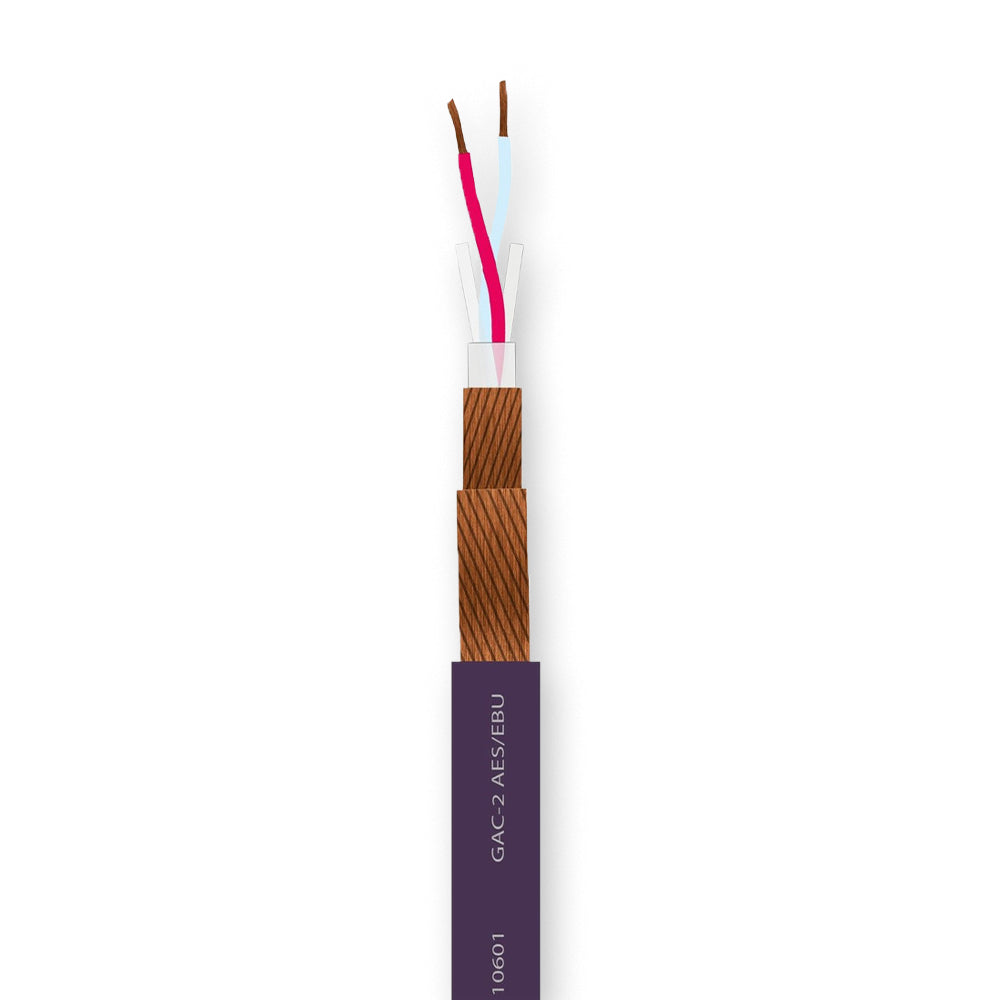

The Gotham 10601 GAC‑2 AES is a professional-grade 6.0 mm double-shielded cable engineered for high-performance AES/EBU digital audio (and DMX) transmission. It features two finely stranded tinned copper conductors (7 × 0.25 mm, approx. 0.34 mm²) insulated with foam-skin polyethylene and arranged in a star-quad twist to maintain constant spacing and impedance—even when bent. This core is protected by dual layers of bare copper braid shields (Reussen-style) for 100% coverage and enhanced noise rejection, with stabilization provided by a PVC foil layer. Enclosed in a flexible, purple PVC jacket (Ø 6.0 mm), the cable delivers exceptional durability and handling. With conductor resistance under 60 Ω/km, attenuation of about 2 dB/100 m at 1 MHz, capacitance < 44 nF/km to shield and < 105 nF/km between conductors, and a tightly controlled 110 Ω ± 5% impedance, it ensures accurate, jitter-free digital audio transmission over long cable runs. Rated for test voltages of 500 V (conductor-to-conductor) and 2,000 V (conductor-to-shield), and operational between –5 °C and +50 °C (–30 °C to +70 °C when fixed), it is ideal for studio, broadcast, and long-distance digital interconnect situations

This cable is ideal for: AES, EBU, DMX, XLR, TRS, extra-long cable runs, and many balanced audio & hybrid/digital applications.

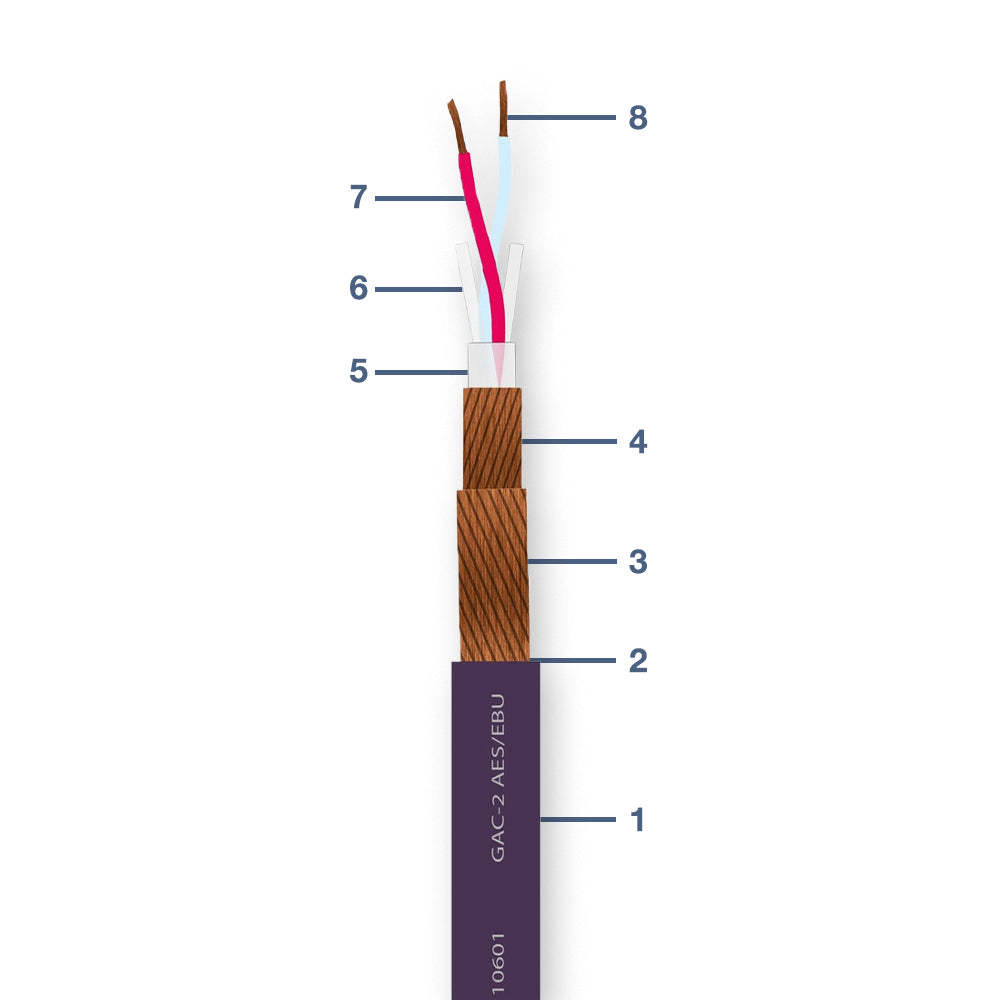

1 = Jacket: PVC, Ø 6.0mm, purple
2 = Viscose fiber coat: Counter wrapped to the shields
3 = Shield No. 1: Bare copper wires (0.10mm) 100% coverage
4 = Shield No. 2: Bare copper wires (0.10mm) 100% coverage
5 = Stabilisation: PVC foil
6 = Cord (2): PE', quad twisted with two conductors
7 = Insulation: Scum 'PE', Ø 2.0mm, white and red
8 = Conductor: Stranded tinned copper wires 7 x 0.25 mm (0.34mm²) 7x30AWG = 22 AWG

Conductor Resistance: < 60 ohm/km
Attenuation: 2 dB/100m
Capacitance (Conductor-Conductor) < 44 nF/km
Capacitance (Conductor-Shield) < 105 nF/km
Insulation resistance: > 10 GOhm/km
Impedance 110 Ohm +/- 5%
Test Voltage (Conductor-Conductor) 500 (RMS)
Test Voltage (Conductor-Shield) 2000 (RMS)
Temperature Range (Flexi-Installed) -5° to +50° C
Temperature Range (Fix-Installed) -30° to +70° C
