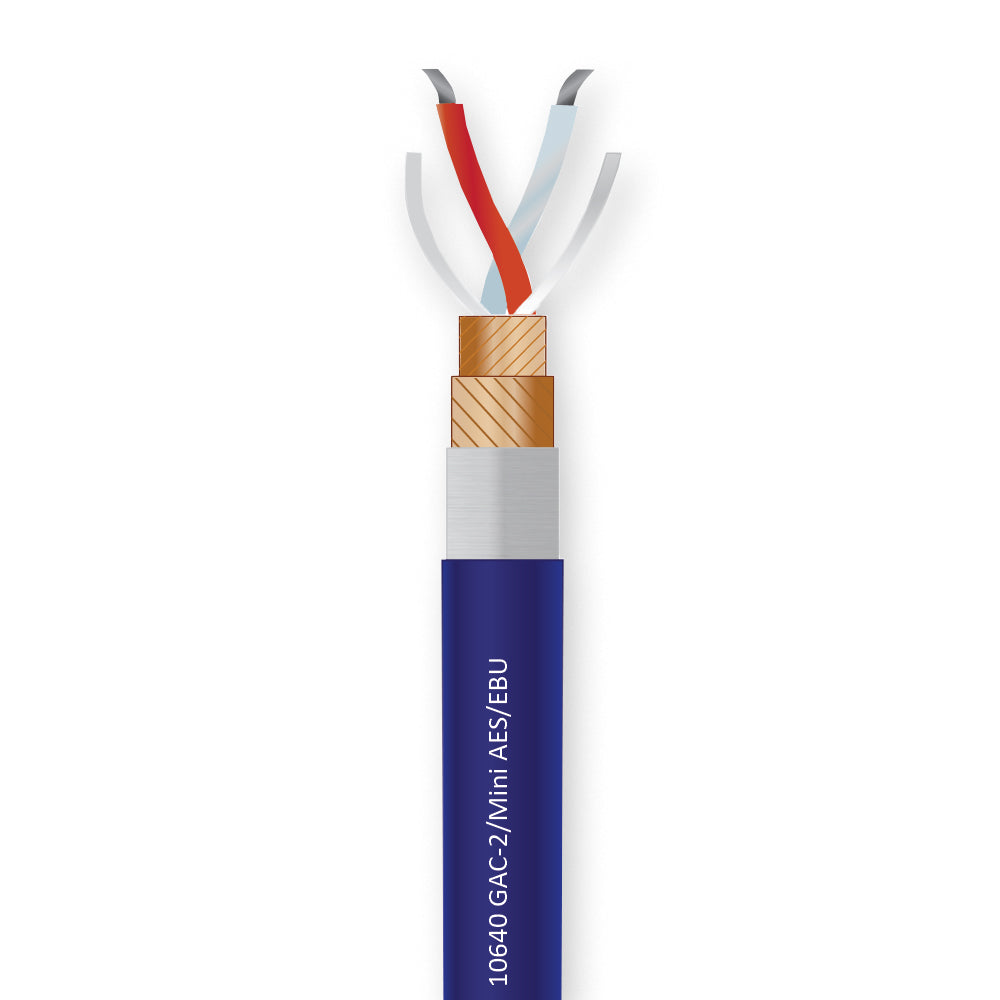

The Gotham 10640 GAC‑2/mini AES FRNC is a professional-grade compact balanced installation cable engineered for high-performance AES/EBU digital (and DMX) signal transmission in safety-critical or space-constrained settings. It employs a star-quad “Twinax” core of finely stranded conductors, ensuring ultra-stable 110 Ω characteristic impedance even when bent. Encased beneath a flame-retardant, halogen-free (FRNC) PVC jacket, the cable is fortified with dual layers of Reussen-style braid shielding and a PVC foil for full coverage and electromagnetic noise rejection. With conductor resistance and attenuation optimized for digital clarity, and certified for 500 V conductor-to-conductor and 2,000 V conductor-to-shield test voltages, it operates flexibly from –5 °C to +50 °C (extending to –30 °C to +70 °C when fixed). Exceptionally durable yet compact, it’s ideal for mini AES/EBU digital snakes, rack wiring, broadcast installations, and wherever reliable, jitter-free connectivity meets stringent safety standards

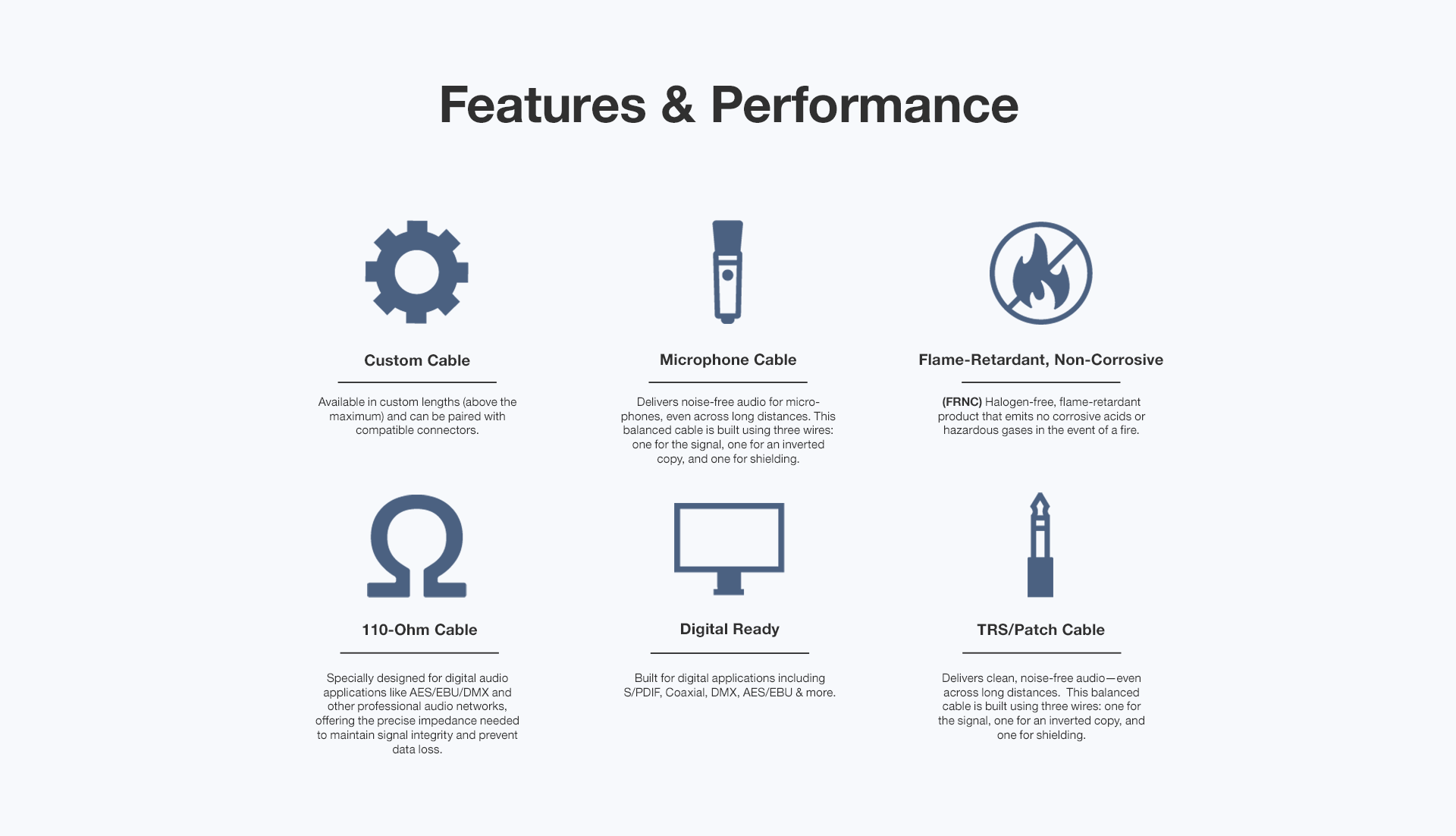

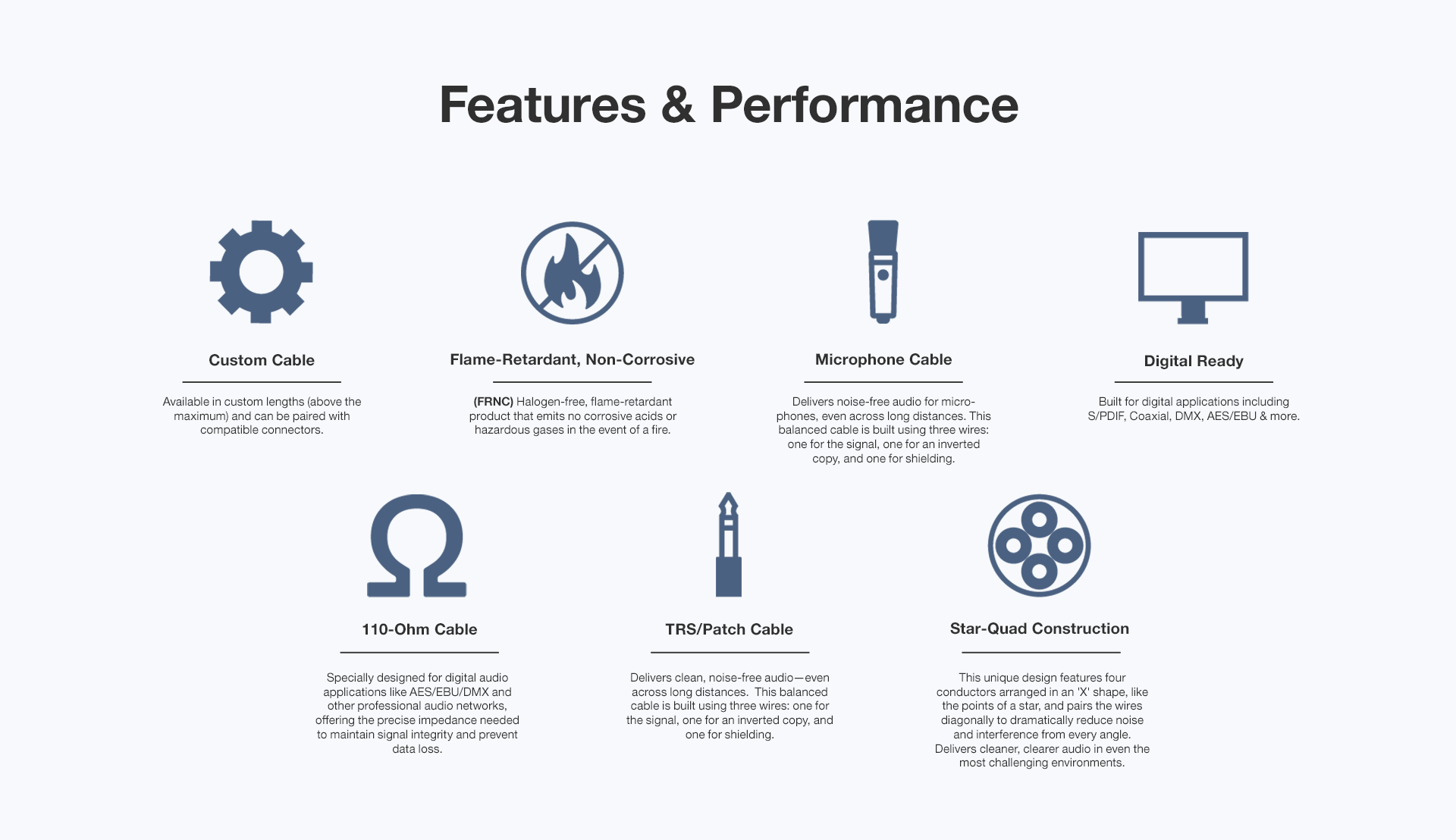

This cable is ideal for: AES, EBU, DMX, XLR, TRS, and especially installations where space is limited and fire resistance and halogen-free construction is required.

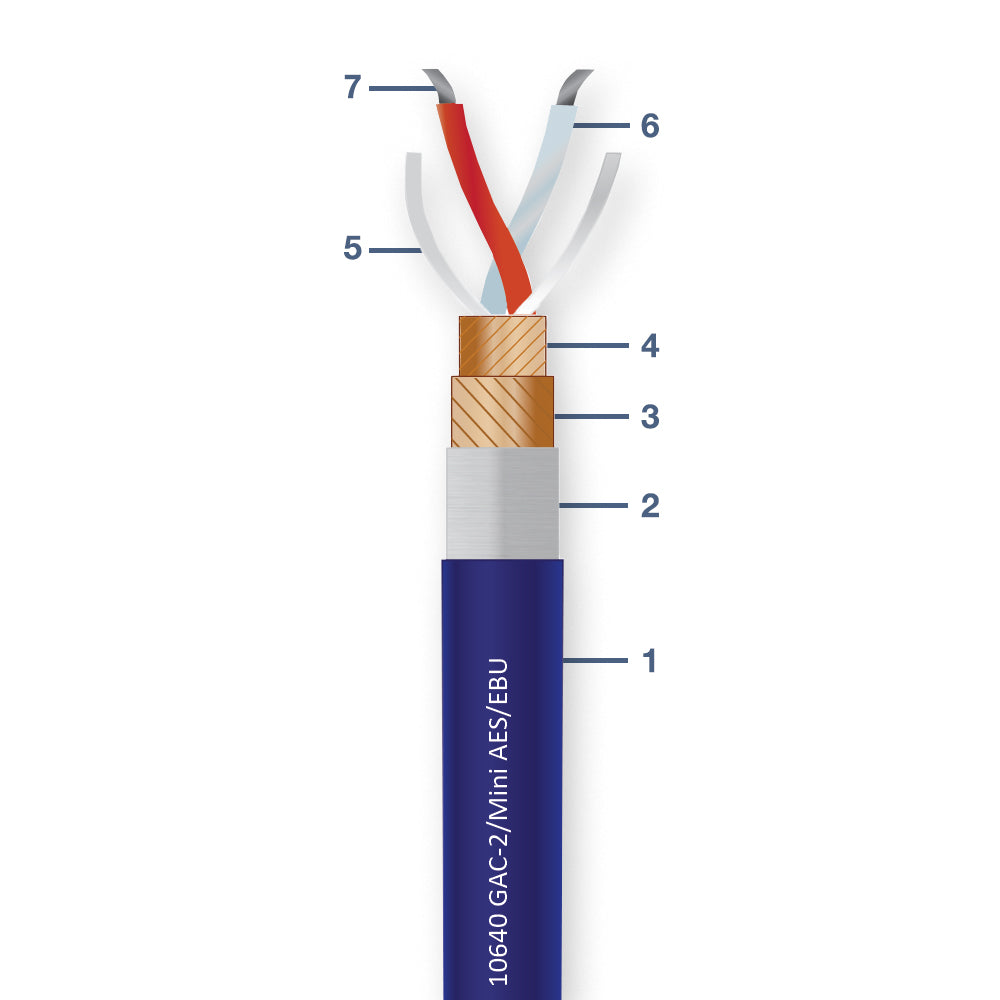

1 = Jacket: FRNC Polyolefine, Ø 3.2mm, dark blue
2 = Viscose fiber coat: Counter wrapped to the shields
3 = Shield No. 1: Bare copper wires (0.10mm) 100% coverage
4 = Shield No. 2: Bare copper wires (0.10mm) 100% coverage
5 = Cord (2): PE', quad twisted with two conductors
6 = Insulation: Scum 'PE' (foam skin), 1.15mm diameter, black and red
7 = Conductor: Stranded tinned copper wires 19 x 0.1mm (0.15mm²) 19x38 AWG = 26AWG

Conductor Resistance: < 115 ohm/km
Attenuation: < 3 dB/km
Impedance: < 110 Ohm/km +/- 20%
Capacitance: < 50 nF/km
Temperature Range (Flexi-Installed) -5° to +50° C
Temperature Range (Fix-Installed) -30° to +70° C
