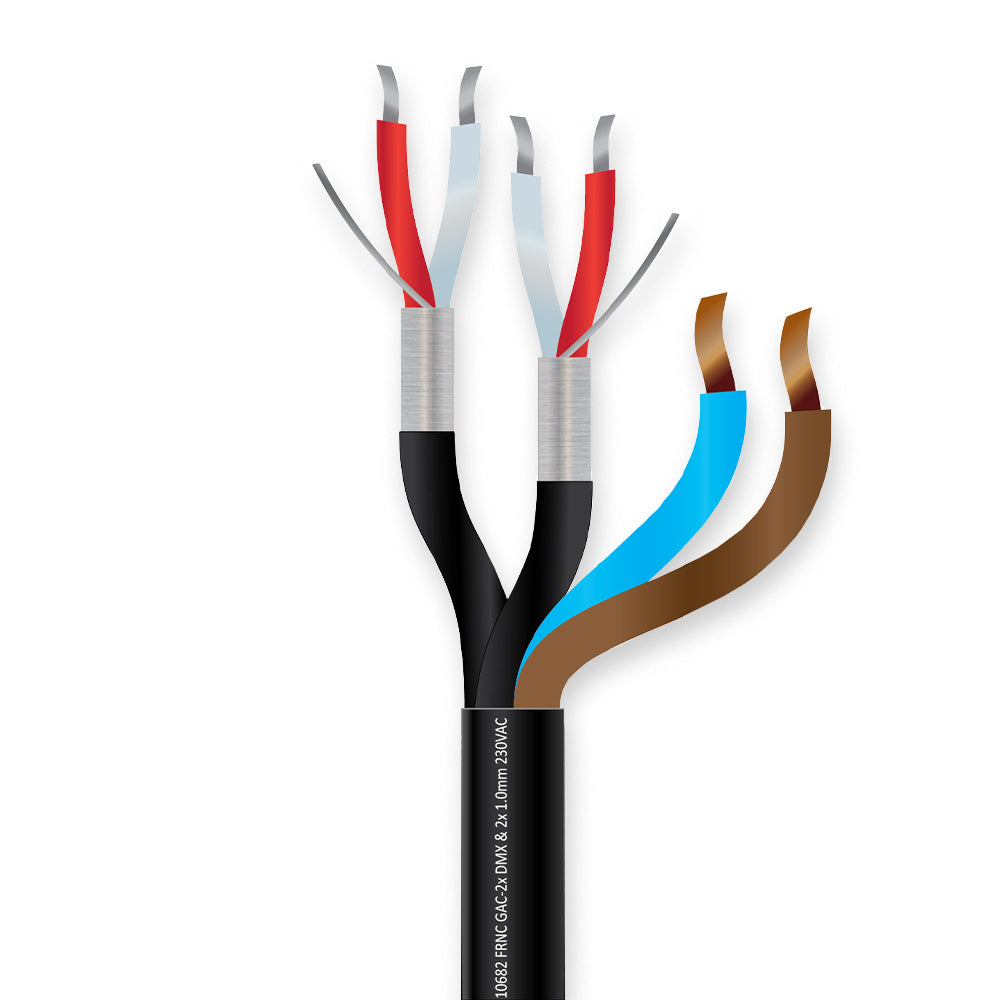

The Gotham 10682 FRNC 2x DMX & 2x 230 VAC LED is a professional-grade 9.2 mm hybrid media control cable engineered for integrated digital data transmission and AC power delivery in lighting and DMX applications. It combines two 110 Ω star-quad DMX signal pairs made from finely stranded tinned LFOC copper conductors (19 × 0.10 mm, ~0.15 mm²) with dual Reussen-style bare copper braid and PVC foil shielding to maintain precise impedance and reject interference. Integrated are two 1.0 mm² power conductors (Class II, 230 VAC), twisted together with the data pair for synchronized routing, all within a flame-retardant, halogen-free FRNC jacket (0.80 mm wall). Conductor resistance is under 116 Ω/km for the data cores and 19.5 Ω/km for power, with nominal capacitance around 50 pF/m, ensuring clear, jitter-free data transfer even over long runs. Rated 100 V nominal (300 VAC max), tested to 800 V between power lines and 2,000 V to shields, and handling current up to 6 A per power line (≈700 W), it operates reliably from –5 °C to +50 °C (down to –30 °C fixed). Robust, flexible, and purpose-built, it’s ideal for DMX-controlled LED installations in demanding, safety-critical environments.

This cable is ideal for hybrid digital/data transfer and AC power use, especially installations where space is limited and fire resistance and halogen-free construction is required.

Cable Component (110Ohm DMX Line)
Construction 2 x 0,15mm² plus ground
Conductor: 19x0,10mmØ SnCu 19x38AWG
Nominal Diameter 0,50mmØ
INSULATION : PEE - 02YI 1
Nominal Insulation Thickness 0,60mm
Nominal Insulation Dia.(mm.Ø) 1,15mmØ
COLOR CODE : White – Red.
DRAIN WIRE : 7x0,20mmØ SnCu (Ground)
SHIELD ALPET foil numbered
TWISTING : 2x DMX plus 2 power core twisted together. Lay length: ~ 70mm
JACKET : FRNC/LSOH Halogenfree compound (HM 2 - DIN VDE 0207 part 24)
Nominal Jacket Thickness 0,80mm.
Max. Diameter 9,20mmØ

Cable Component AC-Power Line
Construction: 2 x 1,00mm²
Conductor: 32x0,20mmØ SnCu 32x32AWG
Nominal Diameter: 1,25mØ
INSULATION : LSOH-HI2
Nominal Insulation Thickness: 0,60mm
Nominal Insulation Dia.(mm.Ø): 2,45mmØ
COLOR CODE : Blue - Brown

110Ohm DMX Line
______________________________________
Conductor Resistance: 110 Ohm
Nominal Capacitance: 50 pF/mt.
Conductor Resistance < 116 Ohm/km.
Rating Voltage: 100 V.
Test Voltage 800 V.
Maximum Watts load (LED-DC Line): @ current 6.0 Ampere/Line

AC-Power Line
______________________________________
Conductor Resistance: ----
Nominal Capacitance: ----
Conductor Resistance: < 19,5 Ohm/km.
Rating Voltage: max. 300 VAC
Test Voltage: 2000 V.
Maximum Watts load (LED-DC Line): < 700 Watt
