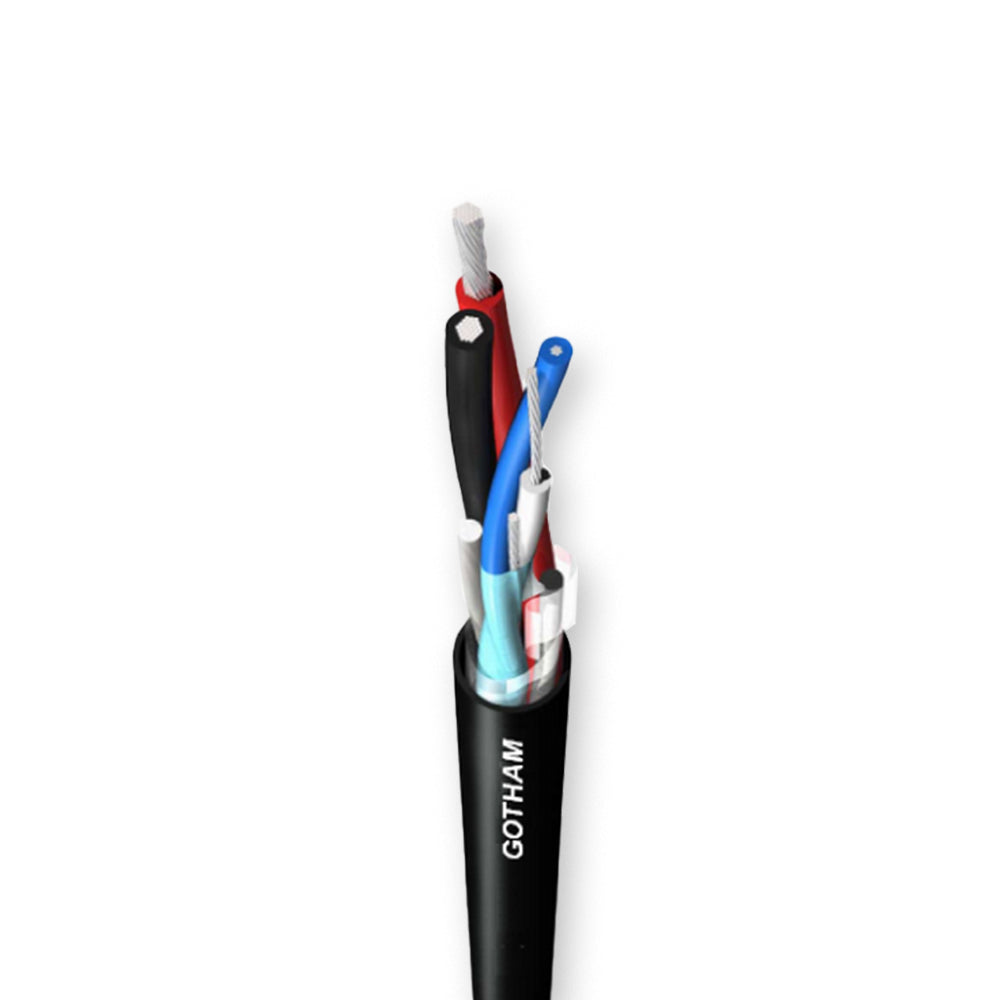

The Gotham 106861 DMX is a professional-grade 3.6 mm star-quad balanced cable engineered for high-performance DMX512 signal transmission and DC power delivery in lighting control systems. It features four finely stranded, tinned copper conductors arranged in a star-quad configuration (each conductor approximately 0.15 mm²), maintaining consistent spacing and a precise 110 Ω impedance—even when flexed. This core is protected by dual layers of Reussen-style bare copper braid and a wrapped foil shield, delivering full 100% coverage and exceptional rejection of electromagnetic interference. The cable is encased in a flexible PVC jacket, offering durability and ease of installation. With low conductor resistance and optimized capacitance for DMX data integrity, it supports reliable, jitter-free control over long runs. Rated for test voltages up to 500 V conductor-to-conductor and 2,000 V conductor-to-shield and operable between –5 °C and +50 °C (extending to –30 °C to +70 °C in fixed installations), it’s the ideal choice for professional stage, broadcast, and architectural lighting applications where signal accuracy and durability are critical.

This cable is ideal for hybrid digital/data transfer and DC power use, especially installations where space is limited and fire resistance and halogen-free construction is required.

110Ohm DMX Line
____________________________________
2 x 0,15mm² plus ground
Constructor: 19x0,10mmØ SnCu
Nominal Diameter 0,50mmØ
Insulation : PEE - 02YI 1
Nominal Insulation Thickness 0,60mm
Nominal Insulation Dia.(Mm.Ø) 1,15mmØ
Color Code : White – Red.
Drain Wire : 7x0,20mmØ SnCu (Ground)
Shield ALPET foil
Twisting : Four insulated conductor twisted together. Lay length: ~ 60mm
Jacket : FRNC Halogenfree compound
Nominal Jacket Thickness 0,80mm.
Max. Diameter 6,50mmØ
Color Light Grey

DC-Power Line
____________________________________
2 x 1,50mm²
Constructor: 30x0,25mmØ SnCu
Nominal Diameter: 1,50 mmØ
Insulation : ----
Nominal Insulation Thickness: 0,30mm
Nominal Insulation Dia.(Mm.Ø): 2,20mmØ
Color Code : Black - Red
Drain Wire : ----
Shield: ----

Cable Component (110Ohm DMX Line)
Characteristic Impedance: 110 Ohm
Nominal Capacitance : 50 pF/mt.
Conductor Resistance : < 116 Ohm/km.
Rating Voltage : 100 V.
Test Voltage : 800 V.
Maximum Watts Load (Dc-Led Line): @ current 9.0 Ampere/Line

Cable Component: AC-Power Line
Characteristic Impedance: ----
Nominal Capacitance : ----
Conductor Resistance : < 13,3 Ohm/km.
Rating Voltage : 300 V.
Test Voltage : 2000 V.
Maximum Watts Load (Dc-Led Line): < 950 Watt
