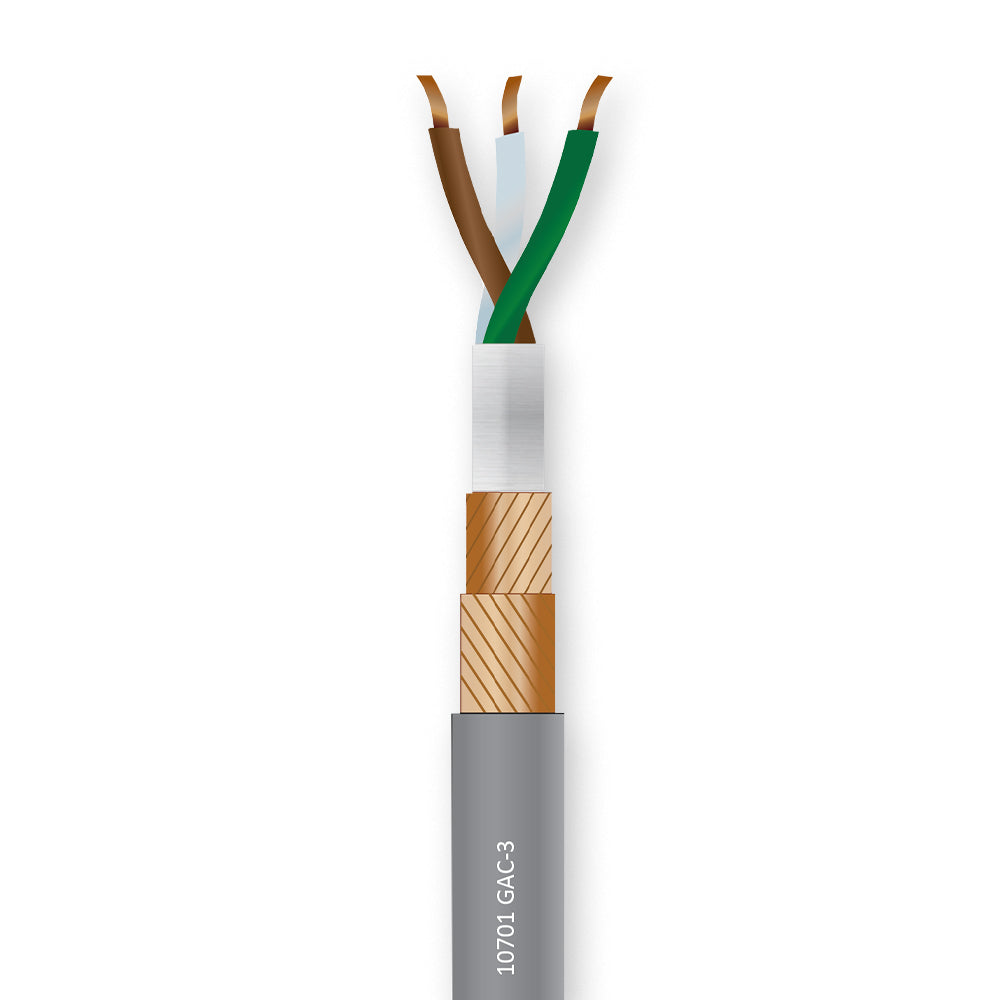

The Gotham 10701/10702 GAC‑3 is a professional-grade 5.0 mm three-conductor microphone cable originally developed in collaboration with Neumann and praised for its ultra-flexible, low-profile round construction. It features three finely stranded bare copper conductors (96 × 0.05 mm, approx. 0.19 mm² each), insulated in PVC and color-coded (white, brown, green), twisted together with a viscose fiber layer for enhanced mechanical stability. The core is fully shielded by dual Reussen-style bare copper braids, providing 100% coverage and exceptional RF rejection—up to 115 dB at 25 kHz—making it ideal for phantom-powered microphones and installations requiring pristine signal integrity. Encased in a durable PVC outer jacket, the cable delivers excellent flexibility and resistance to movement stress at connector points. With conductor resistance under 90 Ω/km, shielding resistance under 20 Ω/km, capacitance below 150 nF/km between conductors and under 240 nF/km to shield, and a characteristic impedance of 10 kHz at 20 kHz, it ensures consistent, high-fidelity audio transmission. Rated for test voltages of 500 V between conductors and 2,000 V to shield, and operational between –5 °C and +50 °C (–30 °C to +70 °C when fixed), this cable is ideal for professional studio, broadcast, and stage applications requiring exceptional durability and performance.

This cable is ideal for: XLR, TRS, and other balanced audio connectors.

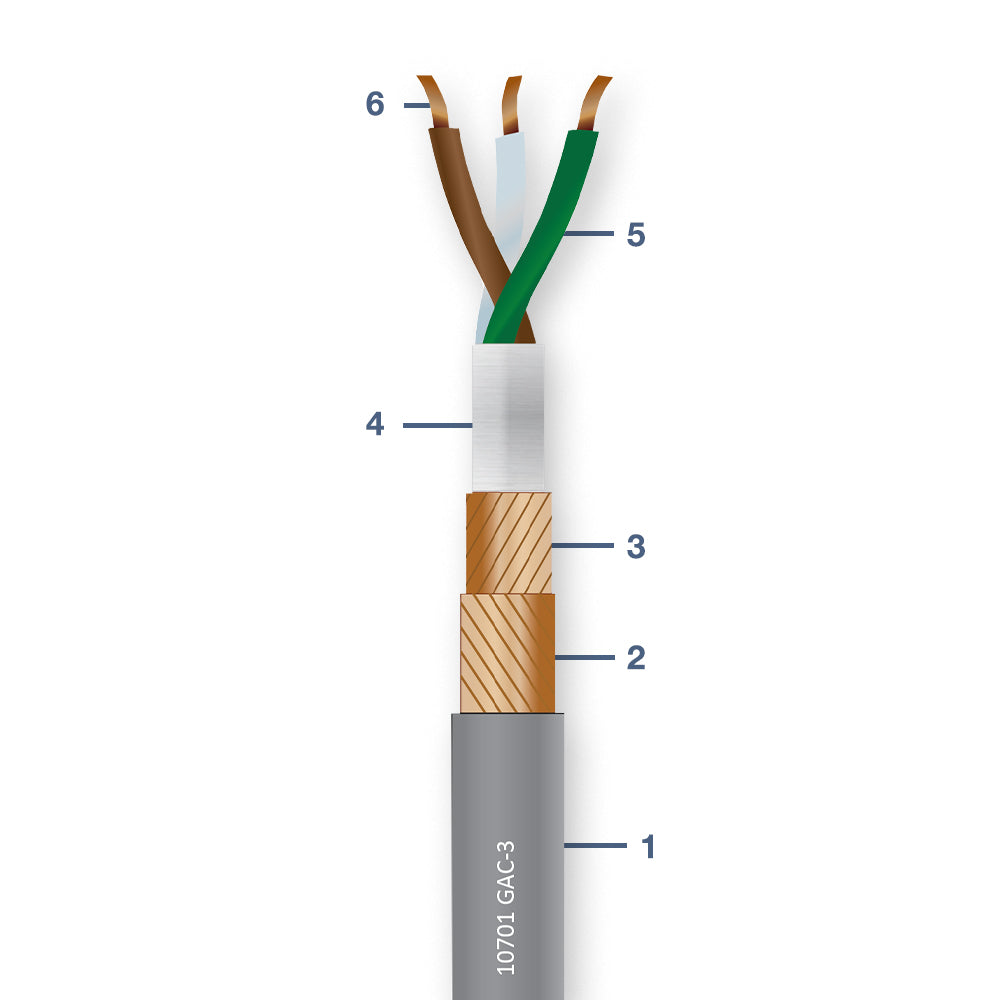

1 = Jacket: PVC, Ø 5.0mm, (10701-10702)
2 = Shield No. 1: Bare copper wires (0.10 mm) 100% coverage
3 = Shield No. 2: Bare copper wires (0.10 mm) 100% coverage
4 = Viscose fiber coat: Counter wrapped to the twisted triple
5 = Insulation (cond): PVC, Ø 1.2 mm, white, brown and green, twisted triple
6 = Conductor: Stranded bare copper wires 96 x 0.05 mm (0.19mm²) 96x44 AWG = 24 AWG

Conductor Resistance: < 90 ohm/km
Shielding Resistance: < 20 Ohm/km
Capacitance (Conductor-Conductor) < 150 nF/km
Capacitance (Conductor-Shield) < 240 nF/km
Characteristic impedance: 10 kHz
Test Voltage (Conductor-Conductor) 500 (RMS)
Test Voltage (Conductor-Shield) 2000 (RMS)
Operating voltage: low voltage
Temperature Range (Flexi-Installed) -5° to +50° C
Temperature Range (Fix-Installed) -30° to +70° C
