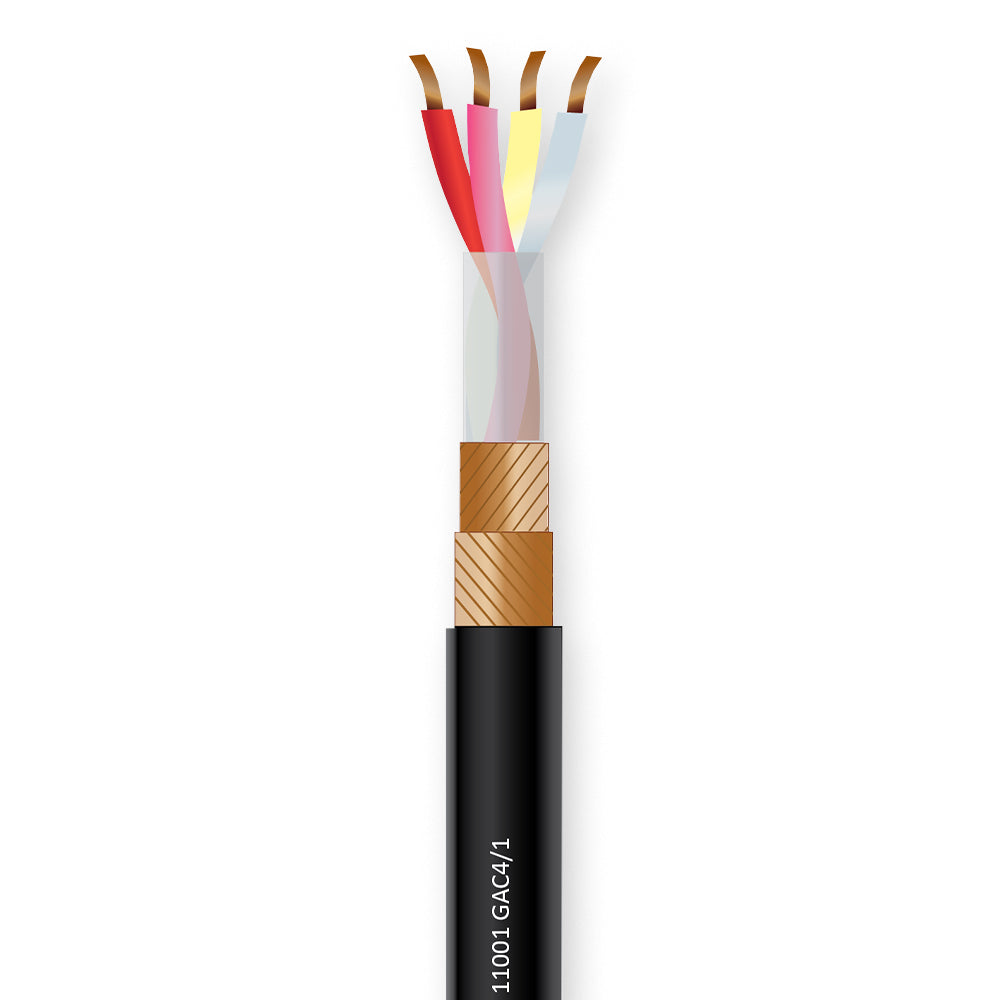

The Gotham 11001 GAC‑4/1 is a professional-grade 5.4 mm Star‑Quad microphone cable engineered for exceptional RF rejection and signal fidelity in high-demand environments. It features four finely stranded bare copper conductors (96 × 0.05 mm each, approx. 0.19 mm²) with low-capacitance polyethylene insulation, arranged in a star‑quad geometry to halve signal loss and maintain a stable characteristic impedance at 20 kHz. The conductors are enveloped by dual Reussen-style bare copper braid shields with 100% coverage, backed by a viscose layer, achieving over 130 dB RF rejection at 25 kHz. Wrapped in an ultrasoft black PVC jacket, the cable delivers superb flexibility and handling. With conductor resistance under 90 Ω/km, shield resistance below 20 Ω/km, capacitance < 55 nF/km (cond/cond) and < 103 nF/km (cond/shield), it supports long runs with minimal loss. Tested to 500 V between conductors and 2,000 V conductor-to-shield, and rated for –5 °C to +50 °C flexing (–30 °C to +70 °C fixed), this cable is ideal for professional stage, studio, and broadcast applications where noise immunity and reliability are paramount.

This cable is ideal for: XLR, TRS, and other balanced audio connectors.

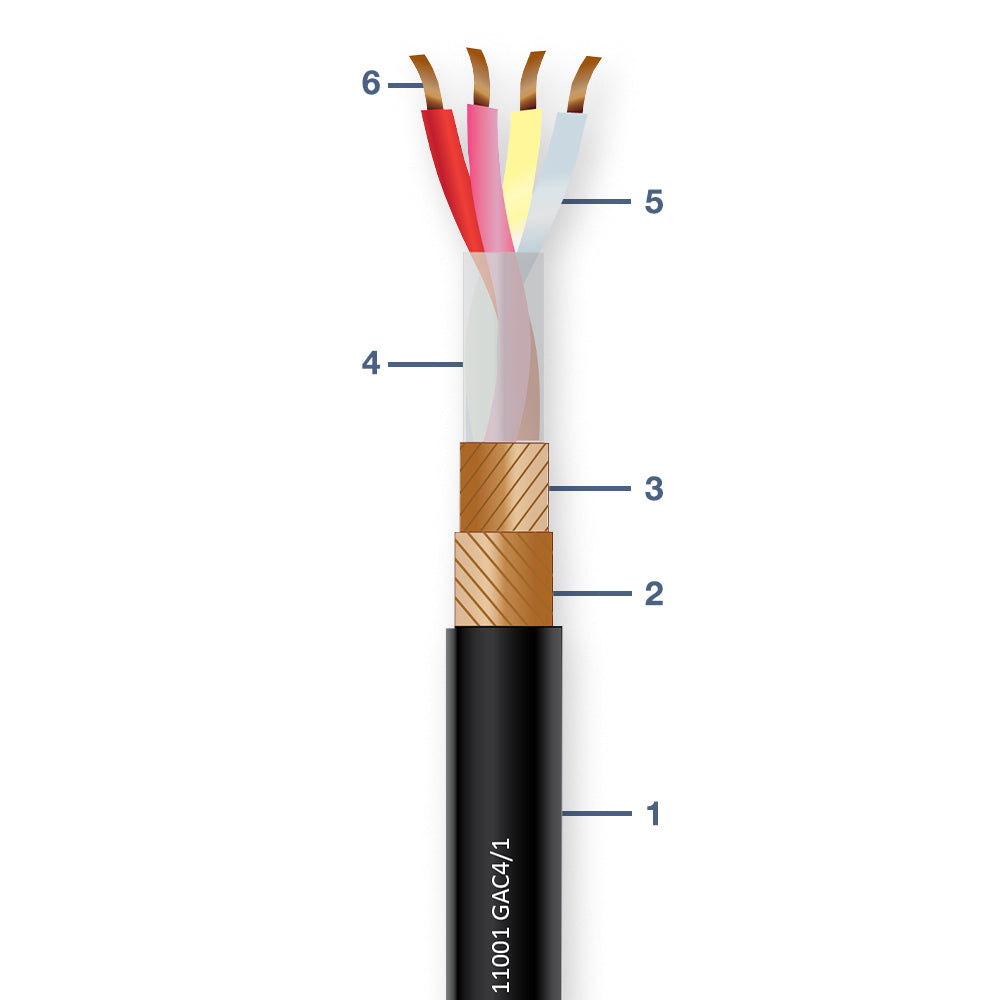

1 = Jacket: PVC, Ø 5.4 mm, velvet black (ultrasoft) 11201 = FRNC Material
2 = Shield No. 1: Bare copper wires (0.10 mm) 100% coverage
3 = Shield No. 2: Bare copper wires (0.10 mm) 100% coverage
4 = Viscose fiber coat: counter wrapped to the quad twisted conductors
5 = Insulation (cond): PE, Ø 1.2 mm, white, red, ivory, pink, quad-twisted
6 = Conductor: Stranded bare copper wires 96 x 0.05 mm (0.19 mm²)96x44AWG = 24 AWG

Conductor Resistance: < 90 ohm/km
Shielding Resistance: < 20 Ohm/km
Capacitance (Conductor-Conductor) <55 nF/km
Capacitance (Conductor-Shield) <103 nF/km
Side Circuit Capacitance (Single) 55 pF/m
Side Circuit Capacitance (Quad) 135 pF/m
Noise Attenuation 130 dB (see wiring)
Characteristic Impedance 20 kHz
Test voltage (cond/cond): 500 (RMS)
Test voltage (cond/shield): 2000 (RMS)
Operating voltage low voltage
Temperature range (flexi-installed): -5° to +50° C
Temperature range (fix-installed): -30° to +70° C
