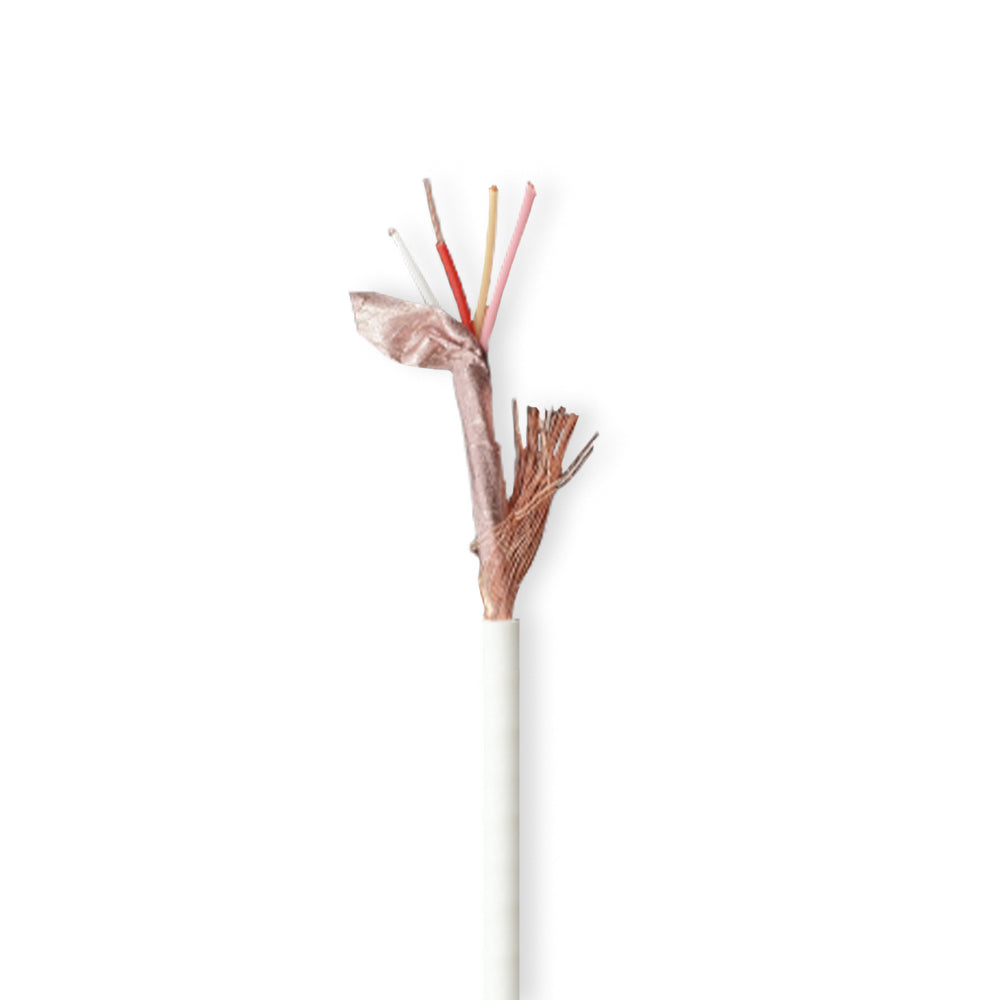

The Gotham 11288 GAC‑4/1 v1 FRNC is a professional-grade 4.7 mm Star‑Quad microphone cable engineered for superior RF immunity and fire-safe performance. It features four finely stranded bare copper conductors arranged in a precision star-quad geometry with low-capacitance polyethylene insulation, ensuring consistent conductor spacing and reduced signal loss. The core is wrapped with a viscose fiber layer and shielded by dual Reussen-style bare copper braids, providing full 100% coverage and RF rejection beyond 130 dB at 25 kHz. All of this is enclosed in a halogen-free, flame-retardant (FRNC) white jacket that offers both flexibility and installation safety. With conductor resistance under 90 Ω/km, shielding resistance below 28 Ω/km, and capacitance under 55 nF/km between conductors (and under 103 nF/km conductor-to-shield), it delivers clear, consistent audio over long distances. Rated for test voltages up to 500 V between conductors and 2,000 V to shield, and operable between –5 °C and +50 °C in flexing use (–30 °C to +70 °C when fixed), this cable is ideal for professional stage, studio, broadcast, and installation environments where both fire safety and uncompromised signal integrity are critical.

This cable is ideal for: XLR, TRS, and other balanced audio connectors - especially in installation environments where fire resistance is paramount.

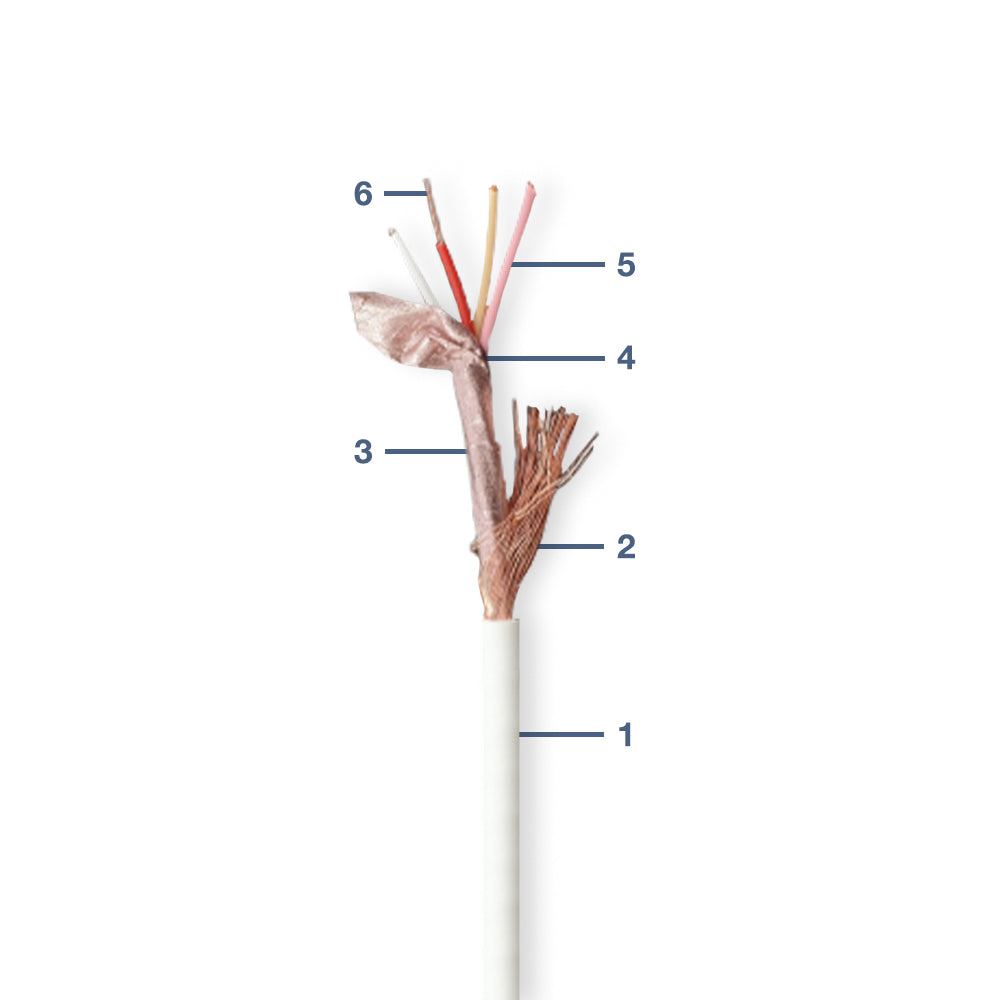

1 = Jacket: FRNC, Ø 4.7 mm, velvet white 0.70mm
2 = Shield No. 1: Bare copper wires (0.10 mm) 100% coverage
3 = Shield No. 2: (Conductive Viscose fiber coat)
K6160 Polyester nonwoven thermally bonded,
both sides copper coated. Counter wrapped to the quad twisted conductors
4 = Twisting: 4 core and cotton yarns twisted together, star-quad
5 = Insulation (cond): PE -2YI1 , Ø 1.2 mm, 0.30mm , red, white, ivory, pink, star quad arrangement
6 = Conductor: Stranded bare copper wires 7x0.20mm LCOF Ø 0.60mm (0.22 mm²) 7x32AWG = (24AWG)

Conductor Resistance: < 85.0 ohm/km
Shielding Resistance: < 14.0 Ohm/km
Capacitance (Conductor-Conductor) < 42 nF/km
Capacitance (Conductor-Shield) < 120 nF/km
Side Circuit Capacitance (Single 42 pF/m
Side Circuit Capacitance (Quad) 120 pF/m
Noise Attenuation 130 dB (see wiring)
Characteristic Impedance 180 Ohm
Test voltage (cond/cond): 1200 (RMS)
Test voltage (cond/shield): 1200 (RMS)
Operating voltage low voltage 100v max
Temperature range (flexi-installed): -5° to +50° C
Temperature range (fix-installed): -30° to +70° C
