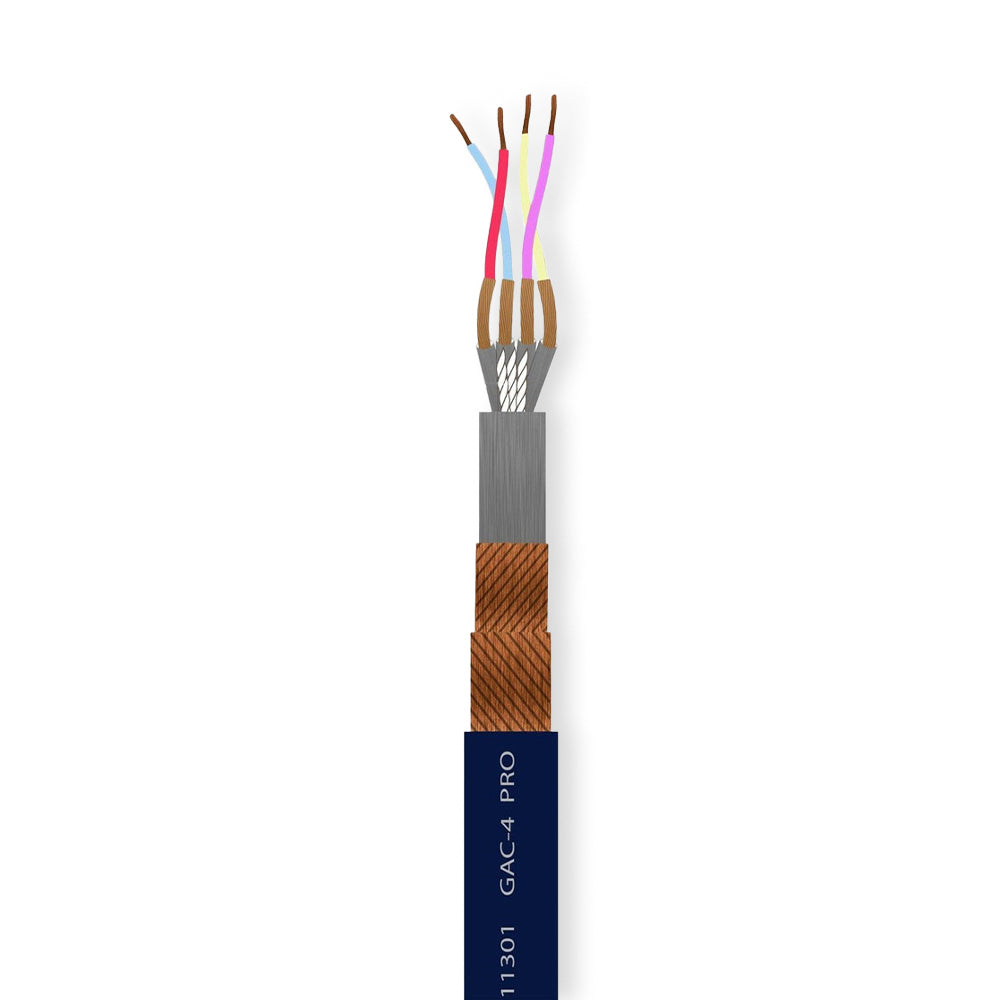

The Gotham 11301 GAC‑4/1 Ultra Pro is a professional-grade 8.8 mm star‑quad microphone cable engineered for superior RF rejection, durability, and uncompromised audio performance. It features four finely stranded bare LCOF copper conductors (64 × 0.10 mm each, approx. 0.50 mm²) with low-capacitance cellular polyethylene insulation (~2.0 mm Ø), arranged in a precision star‑quad geometry to halve signal loss and maintain a stable 110 Ω impedance. Each conductor is individually shielded with a lap-style Reussen copper braid and aluminum-coated polyester foil, then the entire core is enclosed by a second Reussen-style braid with full 100 % coverage—creating a total of five shielding layers with RF rejection over 130 dB at 25 kHz. This robust construction is wrapped in an ultraflexible, velvet-matte PVC jacket (marine blue, 8.8 mm Ø), suitable for professional touring and studio use. With conductor resistance ≤ 39 Ω/km, shield resistance < 28 Ω/km, capacitance ≤ 50 nF/km between conductors (and ≤ 103 nF/km to shield), and side-circuit capacitance of 55 pF/m (quad 135 pF/m), it ensures clean, articulate audio over long runs. Rated for 500 V test between conductors and 2,000 V to shield, and flexible from –5 °C to +50 °C (–30 °C to +70 °C when fixed), it delivers uncompromised performance in demanding stage, broadcast, and installation environment

This cable is ideal for: XLR, TRS, and other balanced audio connectors.

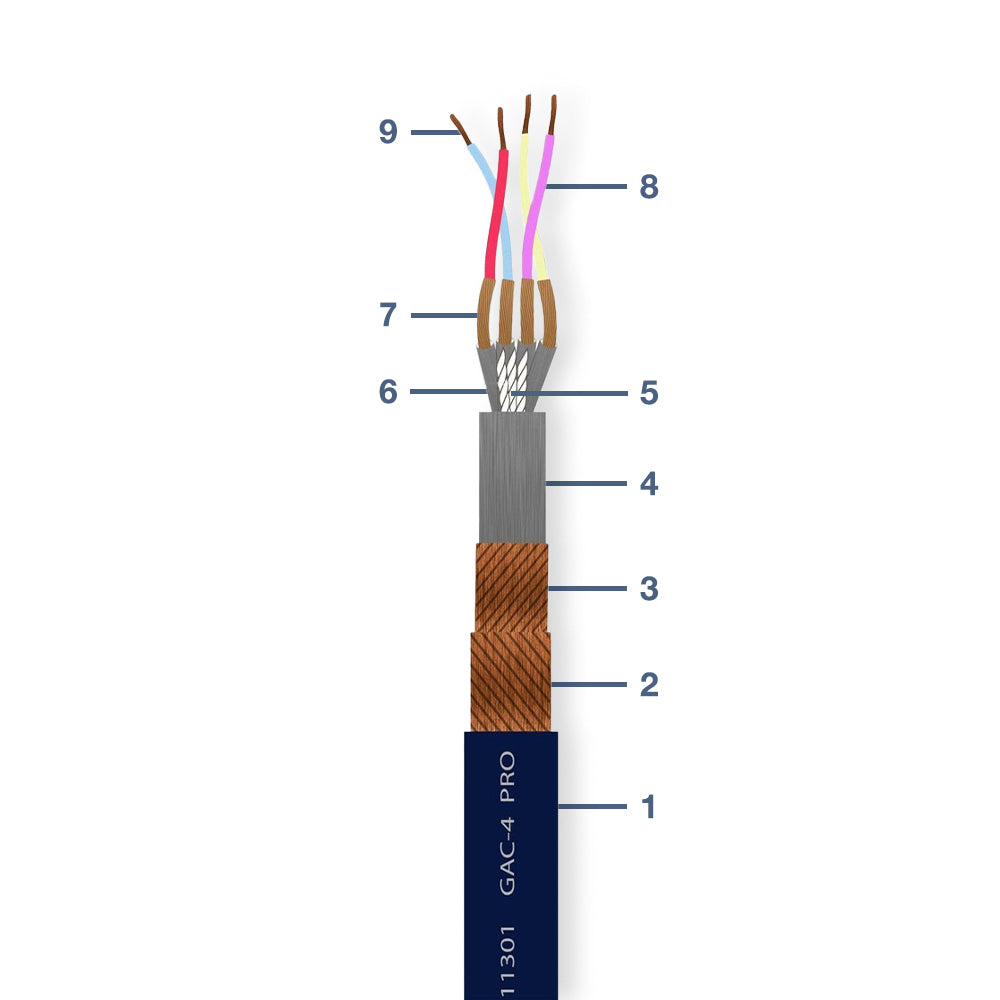

1 = Jacket: PVC, Ø 8.80mm ultramarine blue RAL5013
2 = Shield 1 Bare copper wires (0.10 mm) 100% coverage
3 = Shield 2 Bare copper wires (0.10 mm) 100% coverage
4 = Layer Polyester nonwoven thermally bonded, both sides aluminium coated
5 = Separation: Filler material viscose
6 = Conductor Shield Layer Polyester nonwoven thermally bonded, both sides aluminium coated
7 = Conductor Copper Shield Bare copper wires (0.10 mm) 100% coverage
8 = Insulation Cellular PE, Ø 2.00mm, 4 different colors, red,white,ivory/pink
9 = Conductor Stranded bare LCOF copper wires 64 x 0.10mm (4x) (0.50mm2) 64x38AWG = 20 AWG (0.32mm²)

Conductor resistance: max 39 ohm/km
Shielding resistance: < 28 Ohm/km
Copper weight: Copper weight: per 100m 7.010 Kg/km Higher grade LCOF Copper
Capacitance (Conductor-Conductor) max. 50 nF/km
Capacitance (Conductor-Shield) max. 103 nF/km
Side circuit capacitance: max. 55 nF/km
Side circuit capacitance: max. 135 nF/km
Noise attenuation: 130 db (> wiring)
Test voltage (Conductor-Conductor) 500 (RMS)
Test voltage (Conductor-Shield) 2000 (RMS)
Operating voltage: high voltage
Temperature range (flexi-installed) -5° to +50° C
Temperature range (fix-installed) -30° to +70° C
