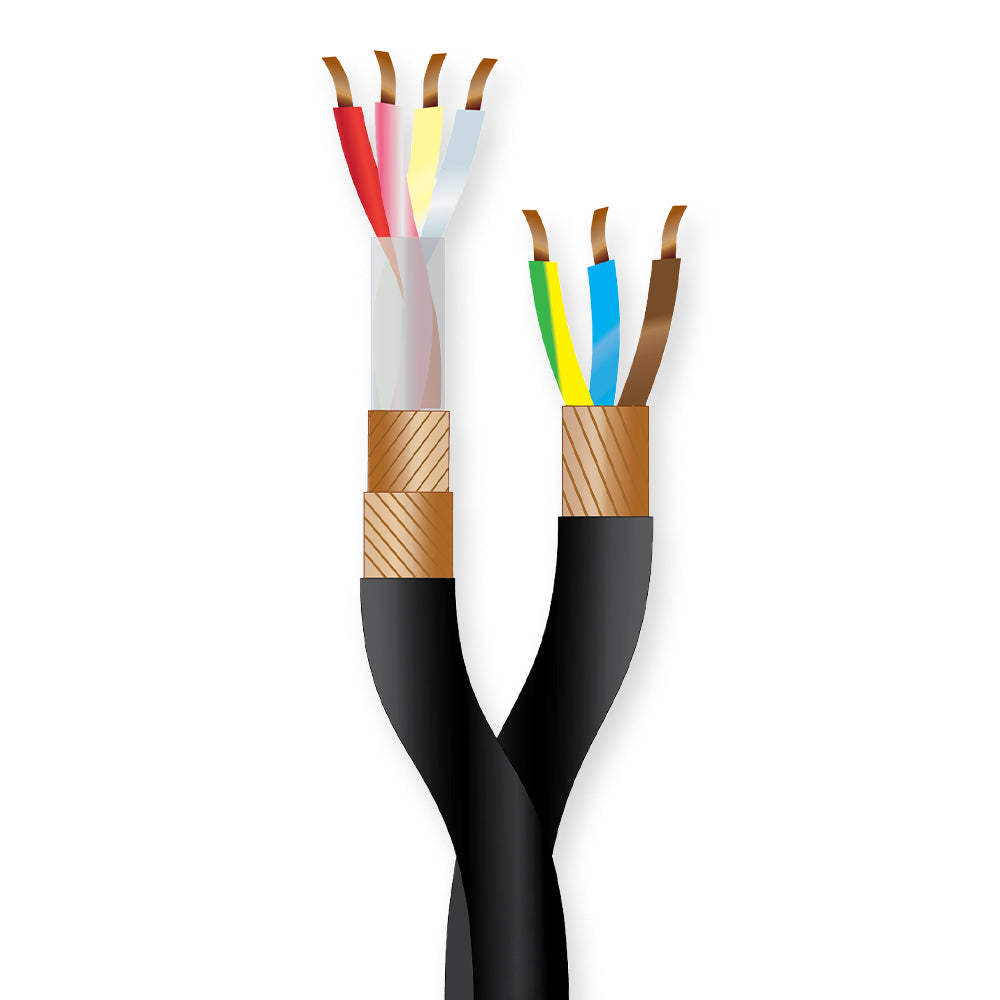

The Gotham 11615 is a professional-grade hybrid Star-Quad cable that combines high-fidelity audio transmission with power delivery in a single durable assembly, tailored for active speaker systems and studio monitors. The 6.0 mm diameter audio side features a star-quad core composed of four finely stranded bare copper conductors (7 × 0.20 mm, approx. 0.22 mm²) with low-capacitance polyethylene insulation, encased in dual shielding: 100 % coverage bare copper braid and aluminum-coated polyester foil, all protected under a black PVC jacket. This construction ensures stable impedance (approximately 80 ohms at 20 kHz), low capacitance (< 42 nF/km conductor-to-conductor, < 120 nF/km conductor-to-shield), and conductor resistance under 85 ohms/km—ideal for preserving audio integrity in RF-rich environments.

On the power side, it includes three 1.50 mm² Class II conductors (blue, brown, yellow/green), double-shielded with a bare copper braid and foil, along with a shielded drain wire, all within a 7.6 mm PVC jacket. Rated for 230 VAC at 9 A (approximately 950 W), the power conductors maintain resistance below 13.3 ohms/km, shield resistance under 25 ohms/km, and pass a 2,000 V test—making this cable a robust, space-saving solution for integrated signal and mains power routing in professional AV applications.

This cable is ideal for active loudspeakers and monitor setups to de-clutter installations and reject interference.

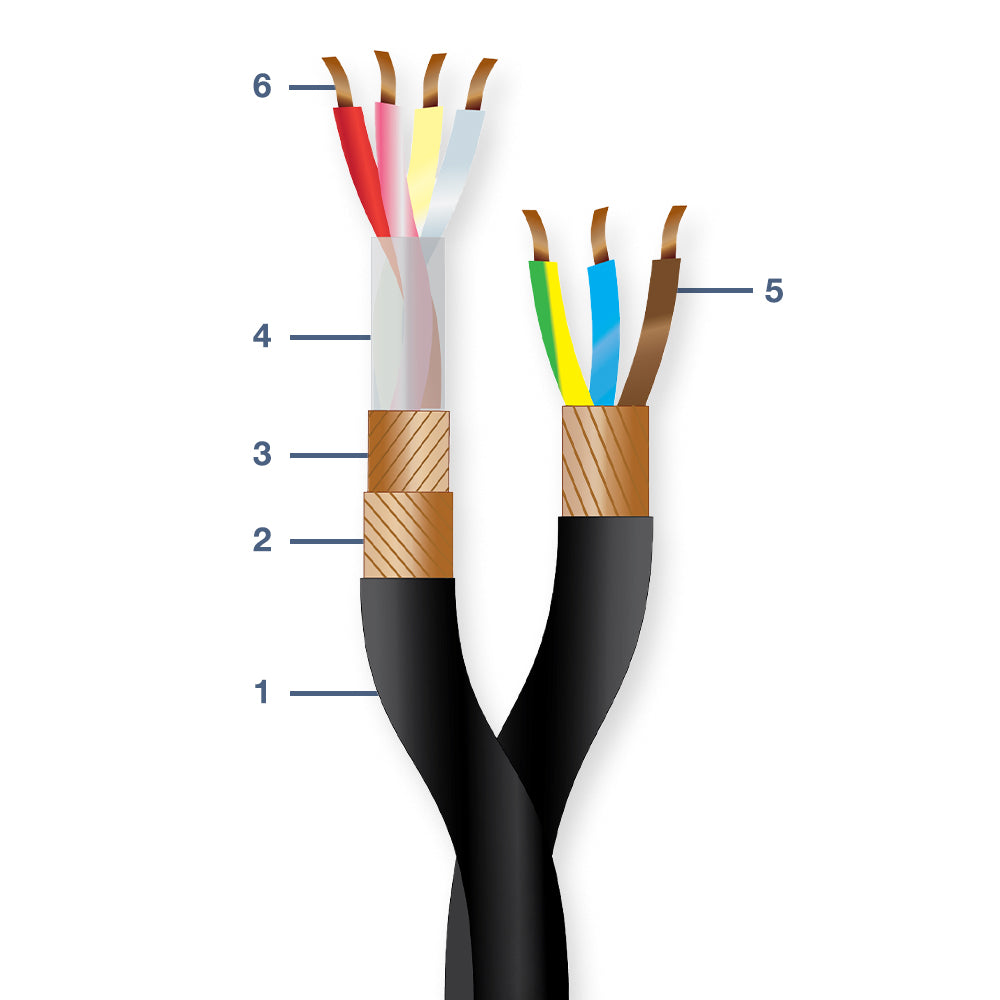

Audio Cable Construction
1 = Jacket: PVC, Ø 6.0 mm, black
2 = Shield No. 1: Bare copper wires (0.10mm) 100% coverage
3 = Shield No. 2: K6160 Polyester nonwoven thermally bonded, both sides copper coated (see below)
4 = Insulation: PE, Ø 1.2 mm, white, red, pink and ivory quad twisted
5 = Conductor: Stranded bare copper wires 7 x 0.20mm (0.22mm²)

Audio Cable Tech Data
Conductor resistance: < 85 ohm/km
Shielding resistance: < 20 Ohm/km
Capacitance (conductor/conductor) < 42 nF/km
Capacitance (conductor/shield) <120 nF/km
Characteristic impedance (@ 20kHz) 80 ohm
Rated Voltage (Operating) max. 100 (RMS)
Test Voltage 1200 (RMS)

Power Cable Construction
1 = Jacket: PVC, Ø 7.6 mm, black
2 = Shield 1: Bare copper wires (0.10mm), 100% coverage
3 = Shield 2: K6160 Polyester nonwoven thermally bonded, both sides copper coated (see below)
4 = Drain Wire 16x0,19mmØ OFC
5 = Insulation: PE - 2YI1 , Ø 2.40mm high voltage tested, Blue – Brown – Yellow/Green
6 = Conductor: 27x0,25mmØ "OFC" Cu 1,50mm² bare copper stranded. IEC 60228 Class 5 flexible copper conductor 1,50mm²
