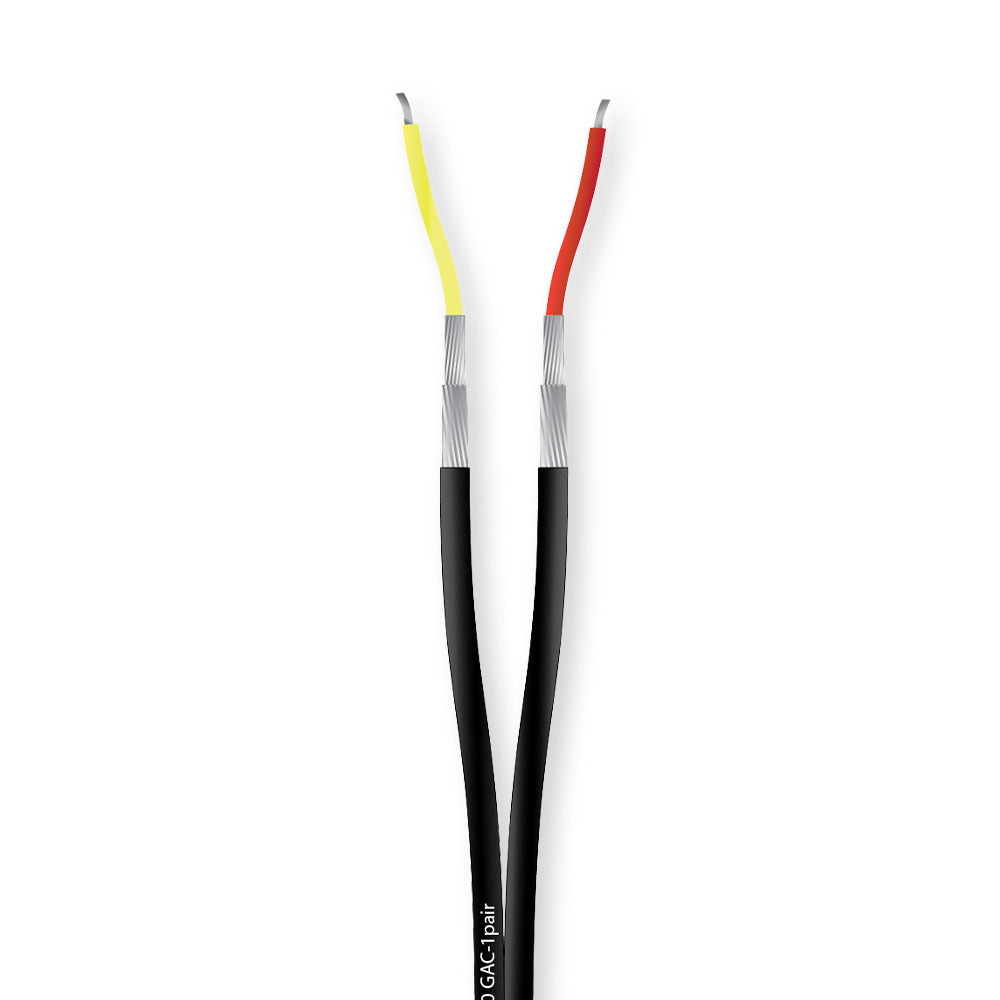

The Gotham 12010 GAC‑1 Twin is a professional-grade flat 3.8 × 7.6 mm unbalanced stereo cable engineered for exceptional flexibility and noise rejection in dense wiring environments. Each channel comprises a 0.19 mm² stranded bare copper conductor (color-coded yellow for left and red for right), each individually shielded by two opposing full-coverage Reussen-style bare copper braid shields—providing minimal crosstalk and strong RF immunity. Tinned copper conductors facilitate easy soldering, while the double-shield construction ensures outstanding flexibility and durability. With conductor resistance and shielding optimized for clean signal transfer, this cable delivers reliable, low-interference audio performance ideal for patch bays, studio setups, and professional stereo installations.

This cable is ideal for stereo unbalanced cable operations requiring tight installations and sleek cable management.

1 = Jacket: PVC, max Ø 3.8 x 7.6 mm, black
2 = Shield No 1: 68 tinned LCOF copper wires (0.10 mm) 100% coverage
3 = Shield No 2: 68 tinned LCOF copper wires (0.10 mm) 100% coverage
5 = Insulation (cond.): PE, semiconductive black
6 = Conductor: Stranded tinned LCOF copper wires 7 x 0.16 mm (0.14 mm²) 7x34AWG = 26 AWG

Conductor resistance: < 140 ohm/km
Shielding resistance: < 22 Ohm/km
Capacitance cond/shield: < 57 nF/km
Insulation resistance: > 200 MOhm/km
Characteristic impedance: 75 Ohm@200MHz
Test voltage: 1000 V eff. C/S
Temperature range (flexi-installed) -5° to +50° C
Temperature range (fix-installed) -30° to +70° C
