The Gotham 34004 EccoSnake is a professional-grade 4-pair analog audio snake cable engineered for clean, high-density studio and installation use. Each pair features two finely stranded oxygen-free copper conductors with foam-PE insulation, and each pair is individually double-shielded by a Reussen-style bare copper braid and copper-coated nonwoven polyester layer—offering full 100% coverage. The result is minimal crosstalk, excellent RF rejection, and flexible handling. With numbered meter markings for precise termination and a compact, durable outer jacket, it delivers reliable, high-integrity multi-channel routing in demanding professional environments.

This cable is ideal for any balanced audio snake use or installation.

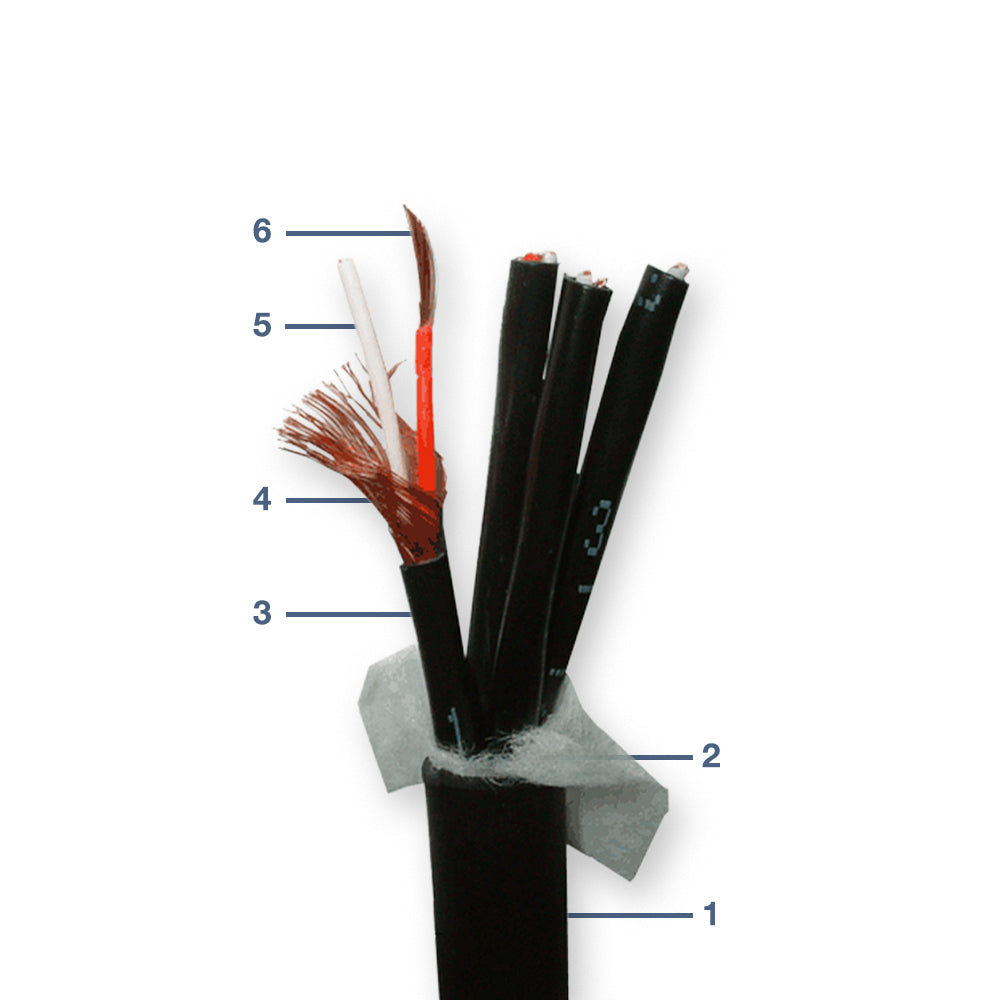

1 = Jacket PVC 34008 = 13.0mm
2 = Viscose Fiber Coat Counter wrapped
3 = Jacket PVC, 3.30 mm max. Ø
4 = Shield 64 bare copper wires, (0.10 mm) 100% coverage
5 = Insulation PE, Ø 1.15 mm, conductors, red and white wrapped
6 = Conductor Stranded bare copper wires 25 x 0.10 mm (0.19mm²)25x38AWG = 24AWG

Conductor Resistance: < 90 ohm/km
Shielding Resistance: < 40 Ohm/km
Capacitance - Conductor/Conductor: < 80 nF/km
Capacitance - Conductor/Shield: < 121 nF/km
Characteristic Impedance: 145 Ohm
Test Voltage (Conductor/Conductor): 500 (RMS)
Test Voltage (Conductor/Shield): 2000 (RMS)
Operating Voltage low voltage
Temperature Range (Flexi-Installed) -5° to +50° C
Temperature Range (Fixed-Installed) -30° to +70° C

34008 Construction
Jacket PVC, max Ø 9.00 mm
Spool Size 100m (ab Deutschland nur in Karton 2x100m)
Weight/M 0.12 kg
Weight/Spool 12.00 kg
