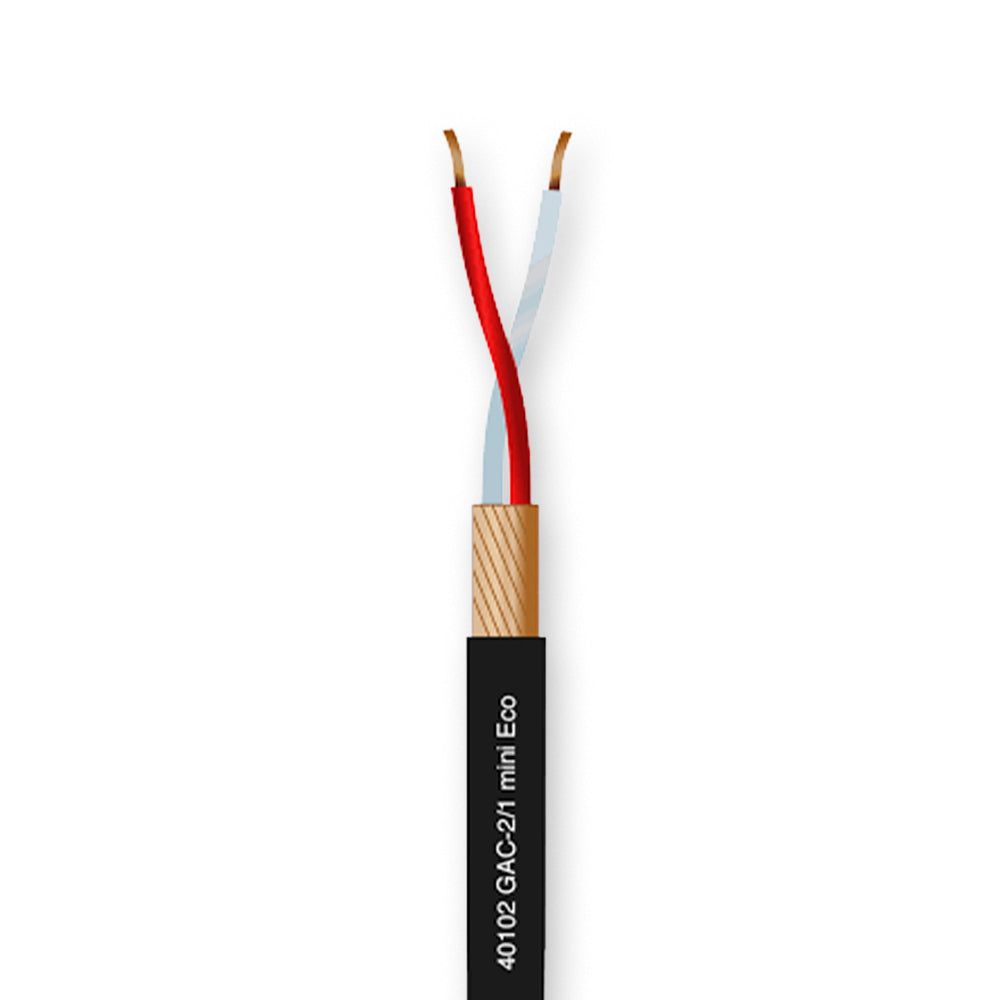

The Gotham 40102 GAC‑2/1 mini is a professional-grade ultra-compact balanced audio cable engineered for low-capacitance performance in fixed installations and rack wiring. It features two finely stranded tinned copper conductors housed within cellular polypropylene insulation, arranged in a micro-twisted pair for compactness. The cable is wrapped in a single 110 Ω-characteristic shield—combining a protective bare copper braid with a nonwoven copper-coated polyester layer—ensuring full coverage and excellent RF rejection. This cable can also be used for sound pickups (Ehrlund) and has a typical impedance of 110 Ohm and able to transport digital signals AES-EBU and DMX. With its remarkably small diameter and flexible PVC jacket, it delivers reliable, space-saving audio routing in demanding installation environments.

This cable is ideal for: XLR, TRS, AES-EBU, and DMX connections.

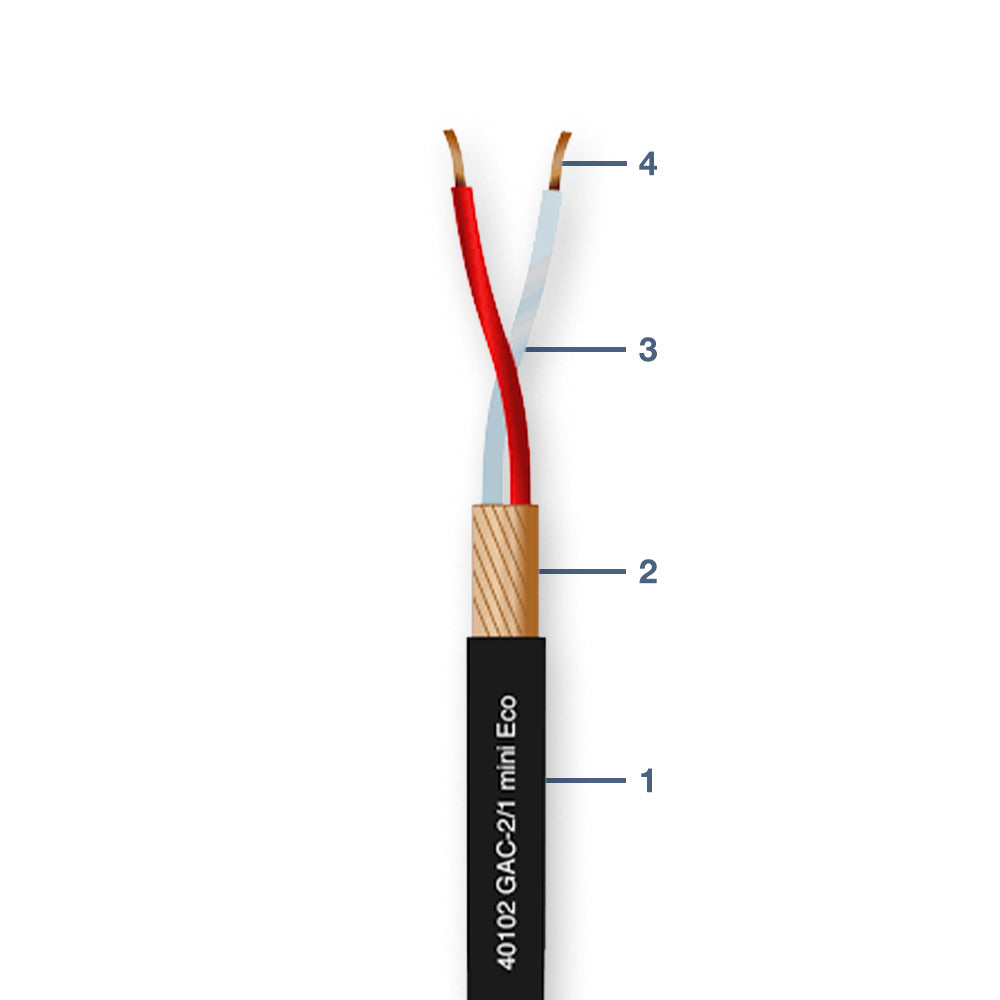

1 = Jacket: PVC, Ø 3.1 mm, black (YM2)
2 = Shield Tinned copper wires (0.10 mm) 100% coverage
3 = Insulation: Cellular PP (09YI 1), Ø 1.15mm, white / red
4 = Conductor: 2 Conductors, stranded tinned copper wires 14 x 0.10mm (0.11mm²) 14x38AWG = 27 AWG

Conductor Resistance: < 178 ohm/km
Shielding Resistance: < 35 Ohm/km
Capacitance [@800Hz] (Conductor-Conductor) < 40 nF/km
Capacitance [@800Hz] (Conductor-Shield) < 130 nF/km
Characteristic impedance: 110 Ohm
Test Voltage (Conductor-Conductor) 500 (RMS)
Test Voltage (Conductor-Shield) 2000 (RMS)
Operating voltage: low voltage
Temperature Range (Flexi-Installed) -5° to +50° C
Temperature Range (Fix-Installed) -30° to +70° C
