The Gotham 50150 2×2.5 mm² is a professional-grade dual-conductor speaker cable engineered for high-performance loudspeaker installations. Each conductor contains a fine-stranded LFOC copper core (2.5 mm²) surrounded by foam‑skin polyethylene insulation for low capacitance and high fidelity. The pair is encased within a durable PVC jacket (approx. 7.5 mm diameter), offering excellent flexibility, mechanical protection, and ease of routing. With robust conductor thickness and insulation, this cable delivers clean, distortion-free audio over long runs in both fixed installations and mobile setups, making it ideal for studio monitor feeds, home theater systems, and stage loudspeaker connections.

This cable is ideal for any unbalanced coaxial loudspeaker installation.

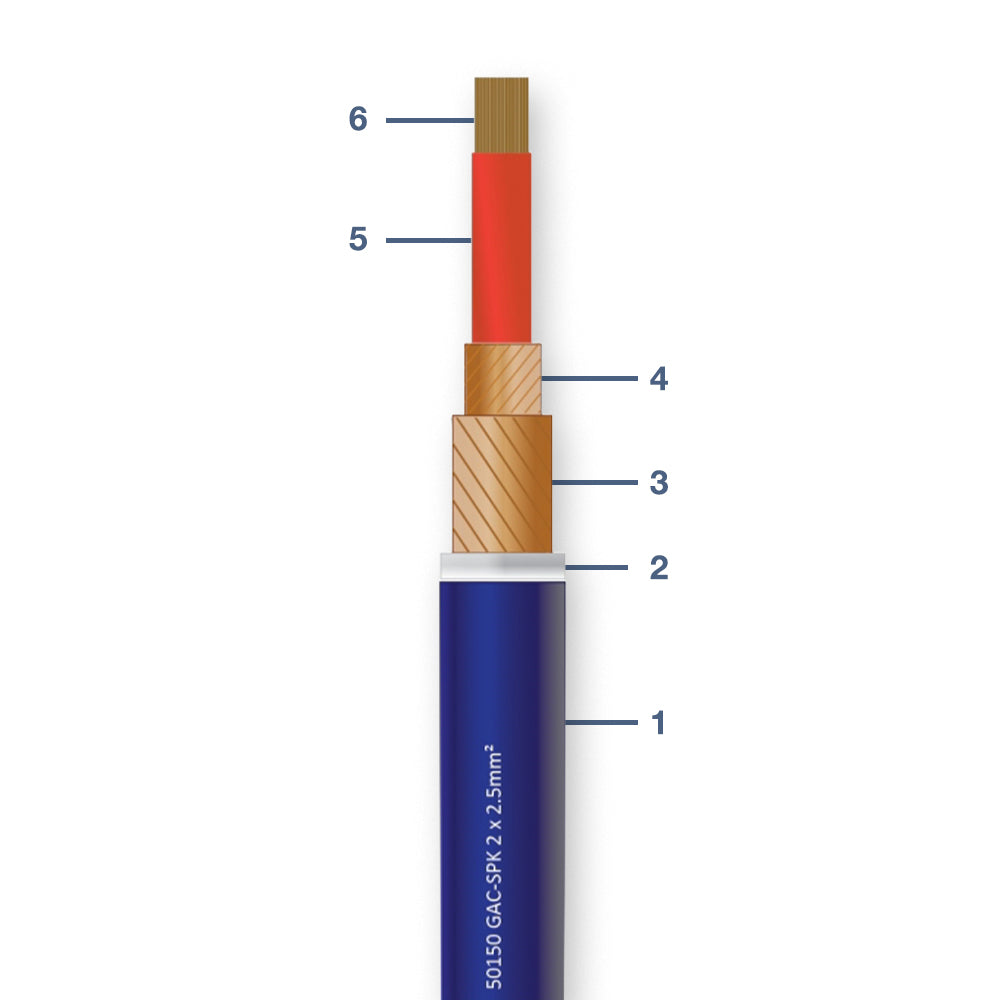

1 = Jacket: PUR, Ø 6.8mm, blue (dark) RAL5013
2 = Separation: PVC, Ø 5.6mm, white
3 = Conductor 1A: Bare copper wires 120x0.10mm Ø
4 = Conductor 1B: Bare copper wires 108x0.10mm Ø = 1A & 1B = total 2.5 mm²
5 = Insulation: PVC, Ø 4.0mm, red RAL3000
6 = Conductor 2: (OFC) Stranded bare copper wires 45 x 0.25mm (2.50mm²) 50x30AWG = 13AWG
(Conductor 1A and 1B)
(# 3&4) could either serve as a shield or 2. conductor for SPK line.

Center Conductor Resistance: < 7.6 ohm/km
Outside Line Resistance: < 7.6 Ohm/km
Capacitance (Conductor/Conductor): <160 nF/km
Test Voltage (Conductor/Conductor): 800 (RMS)
Insulation Resistance: > 200 MOhm/km
Temperature Range (Flexi-Installed) -5° to +50° C
Temperature Range (Fix-Installed) -30° to +70° C
Maximum Watts Load (@ current 15.0 Ampere/Line)
< 1650 Watt
