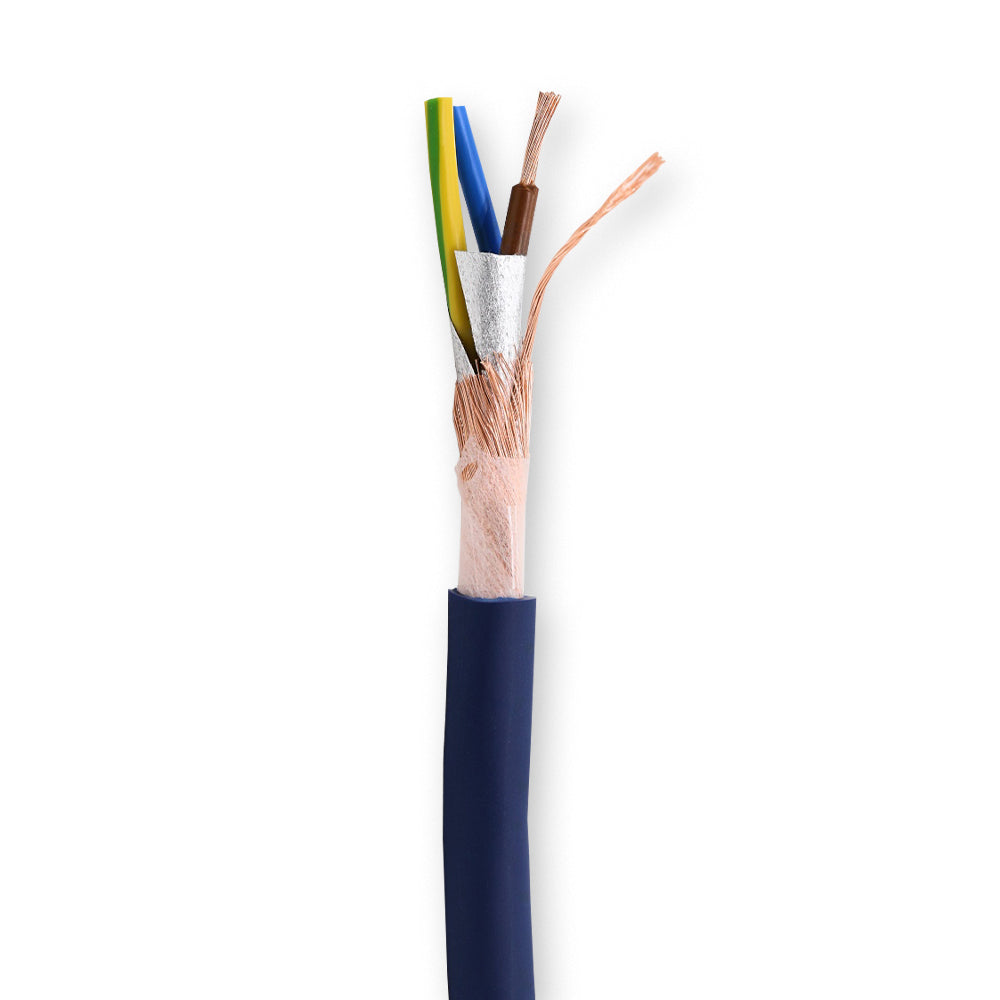

The Gotham 85025 is a professional-grade, shielded mains power cable (3 × 2.5 mm²) designed for low-interference power delivery in demanding audio and broadcast installations. Each conductor consists of fine-stranded copper (2.5 mm²) insulated with polyethylene and enclosed within a marine-blue PVC jacket (~9 mm diameter). The cable features dual-layer shielding: a copper-coated polyester foil (K6160) backed by a full Reussen-style bare copper braid with an integrated tinned-copper drain wire—providing effective protection against 50 Hz hum and high-frequency noise. With conductor resistance under 8 Ω/km and rated for up to 13 A (≈ 3,000 W load) at 230–240 VAC, it is tested to 2,000 V and remains flexible between –30 °C and +70 °C. Ideal for audiophile-grade power distribution, clean mains line routing in studios, and interference-sensitive performance environments.

This cable is ideal for delivering power to mains & high-end audio gear.

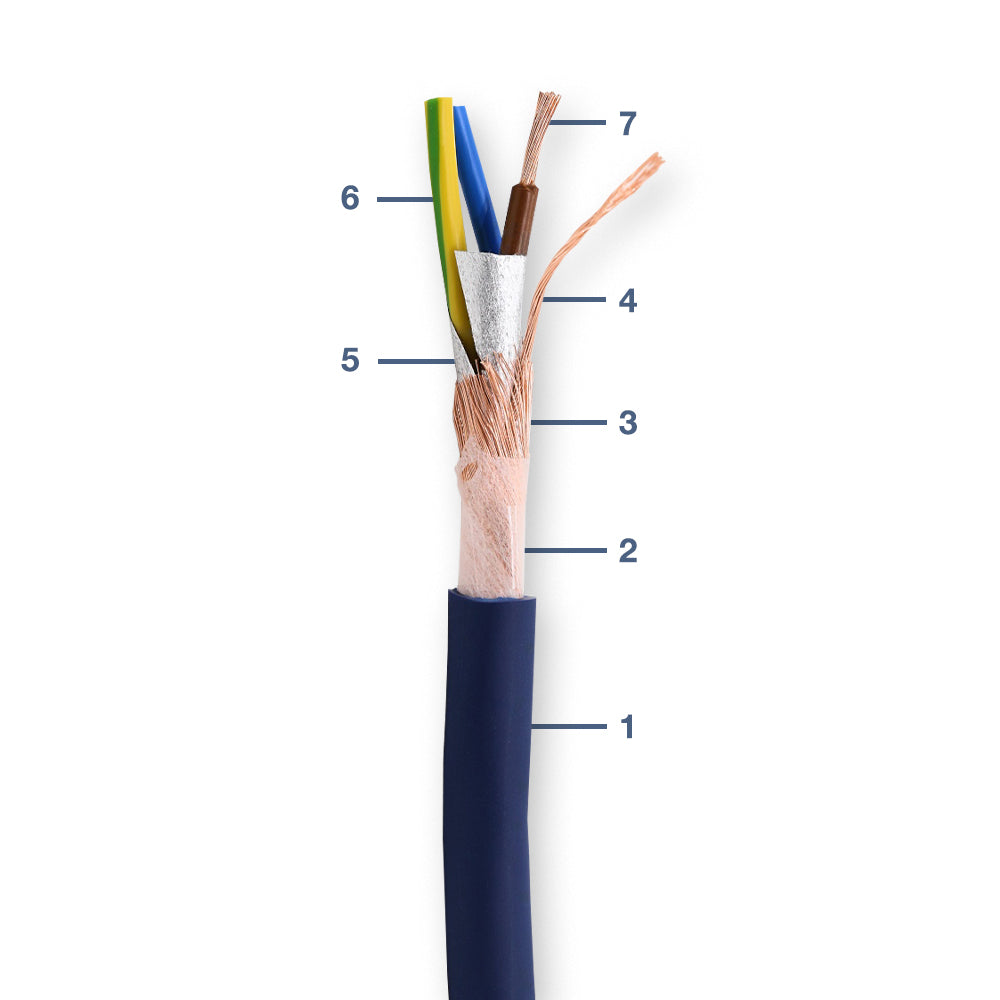

1 = Jacket: PVC (YM2) 1.1mm. Ø 9.50 mm max., ultrablue RAL5013
2 = Wrapping: Non woven fabric tape
3 = Shield #2: Bare copper wires (0.15 mm) 100% coverage S
4 = Drain Wire: 16x0,19mmØ Cu (Ground) bare copper
5 = Shield #1: K6160 Polyester nonwoven thermally bonded, both sides copper coated (see below)
6 = Insulation 3X: PE – 2YI 1, 0.50mm thickness.
Nominal Diameter 3.05 mm. Color code: Blue-Brown-Yellow/Green
7 = Conductor 3X: 45x0,25mmØ Cu 2,50mm² bare copper stranded. IEC 60228 Class 5 flexible copper conductor 2,50mm²

Conductor Resistance: < 8.20 Ohm/km
Rating Voltage: 300/500V
Test Voltage: 2000 (RMS)
Temperature Range: -30° to +70° C
Maximum Watts Load (@ Current 15.0 Ampere/Line) < 1650 Watt
