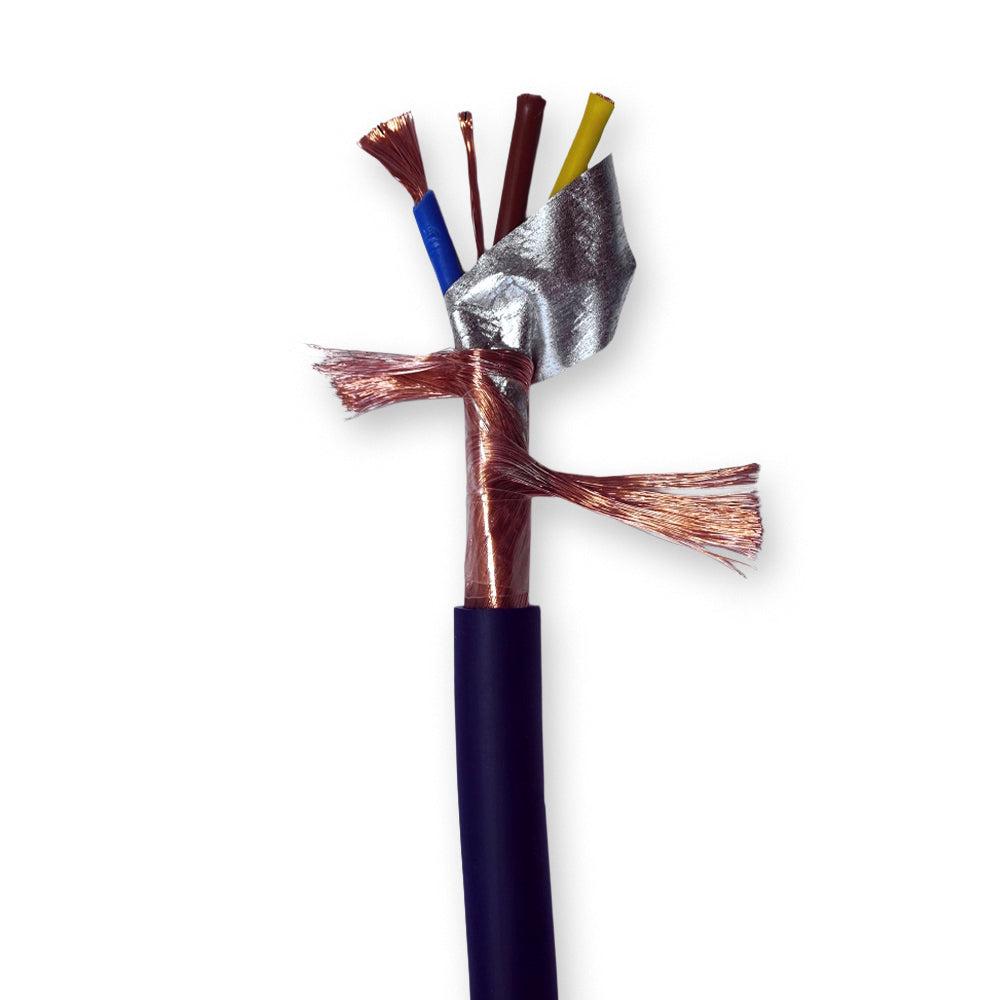

The Gotham 85055 3×5.5 mm² is a professional-grade shielded mains cable designed for delivering high current with low noise in audio and performance environments. It features three fine-stranded bare OFC copper conductors (5.50 mm² each) individually PE-insulated (Ø 4.6 mm) and color-coded (blue, brown, yellow/green), all enclosed in a triple-layer shielding system—including dual Reussen bare-copper braids and a conductive, PETAL copper-coated fleece—beneath a robust 13.5 mm Ø dark blue PVC jacket. Rated for up to 230 VAC (300/500 V rating, 2,000 V test), it supports up to 33 A per line (~4,000 W), with conductor resistance under 3.5 Ω/km. Flexible between –30 °C and +70 °C, this cable ensures powerful, clean mains delivery while protecting nearby sensitive audio wiring from 50/60 Hz hum and RF noise

This cable is ideal for delivering power to mains & high-end audio gear.

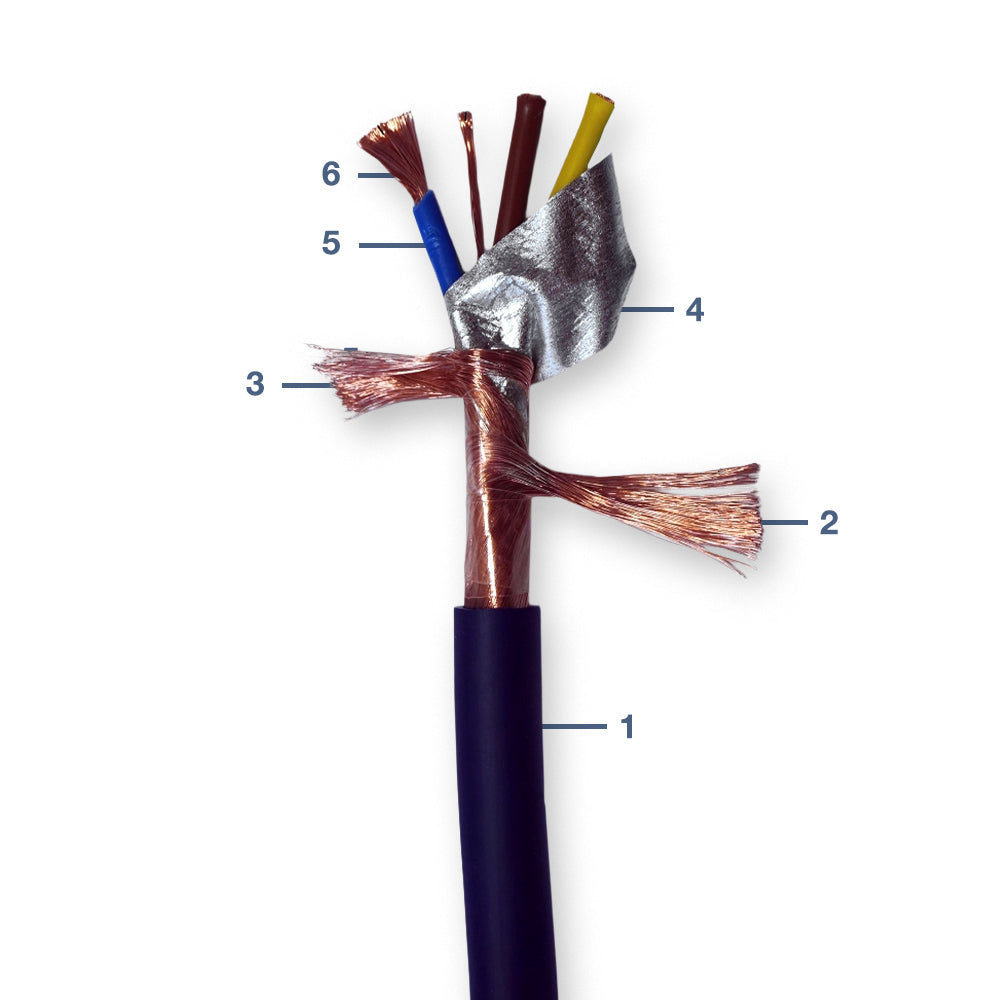

1 = Jacket: PVC (YM2) 1.30mm. 13.50mm Ø dark blue RAL5013
2 = Shield #1: Bare copper wires (0.20 mm) 100% coverage S
3 = Shield #2: Bare copper wires (0.20 mm) 100% coverage Z
4 = Shield #3: K6160 Polyester nonwoven thermally bonded, both sides copper coated, counter wrapped to the twisted conductors.
5 = Insulation 3X: PE-2YI 1 0.80mm thickness. Nominal Diameter 4.60 mm. Color code: Blue-Brown-Yellow/Green
6 = Conductor 3X: 105x0,25mm Ø bare OFC copper wires 2,97mm Ø = 5,50mm²

Conductor Resistance: < 3.5 Ohm/km
Rating Voltage: 300/500V
Test Voltage: 2000 (RMS)
Temperature Range: -30° to +70° C
Maximum Watts Load (@ Current 33.0 Ampere/Line) < 4000 Watt
